| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,745 pcs
|
8745 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,835 pcs
|
3835 pcs | On Request | 1 | On Request | On Request | 20 | On Request | On Request | |
|
2,900 pcs
|
2900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,482 pcs
|
1482 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Features | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current (Nominal @ Output 1) | |
| Output Current (Nominal @ Output 2) | |
| Output Voltage (Nominal @ Output 1) | |
| Output Voltage (Nominal @ Output 2) | |
| Package / Case | |
| Power (Watts) | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Width |

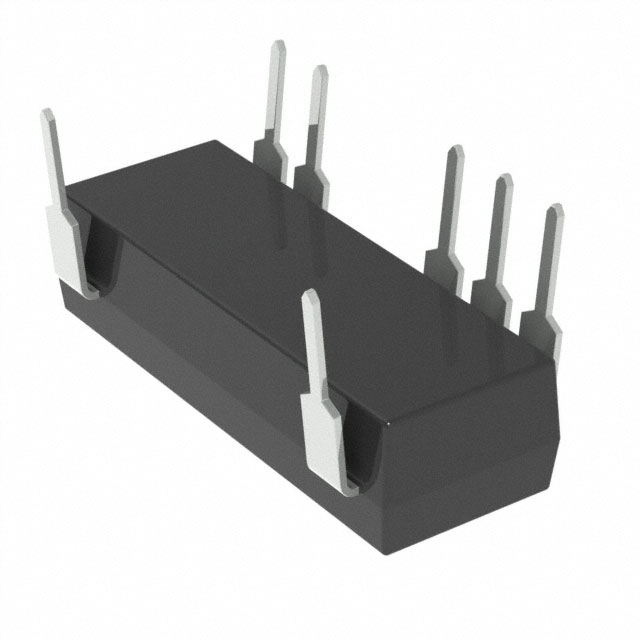

The Texas Instruments DCP010505DBP is an isolated DC/DC converter module designed for commercial ITE applications. It delivers dual regulated outputs of +5V and -5V, each capable of supplying up to 100mA, with a total output power of 1W.
This converter features an efficiency of 81% and includes protection features such as over-temperature protection (OTP) and short-circuit protection (SCP). The module also provides an enable control input that is active high, allowing for remote on/off operation.
The DCP010505DBP is housed in a 14-DIP package with 7 leads (7-PDIP) and is designed for through-hole mounting. Its compact dimensions of 19.7mm x 8.3mm x 5.3mm make it suitable for space-constrained designs. The operating temperature range is -40°C to 100°C.
The DCP010505DBP provides dual outputs: +5V and -5V.
Each output can deliver up to 100mA.
The operating temperature range is -40°C to 100°C.
It is available in a 14-DIP (0.300", 7.62mm) through-hole package with 7 leads (7-PDIP).
Yes, it is RoHS3 compliant and REACH unaffected.
It includes over-temperature protection (OTP) and short-circuit protection (SCP).
Yes, it features an active-high enable control for remote on/off operation.
