| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Arrangement | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Gender | |
| Hardware | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Salt Spray Test | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

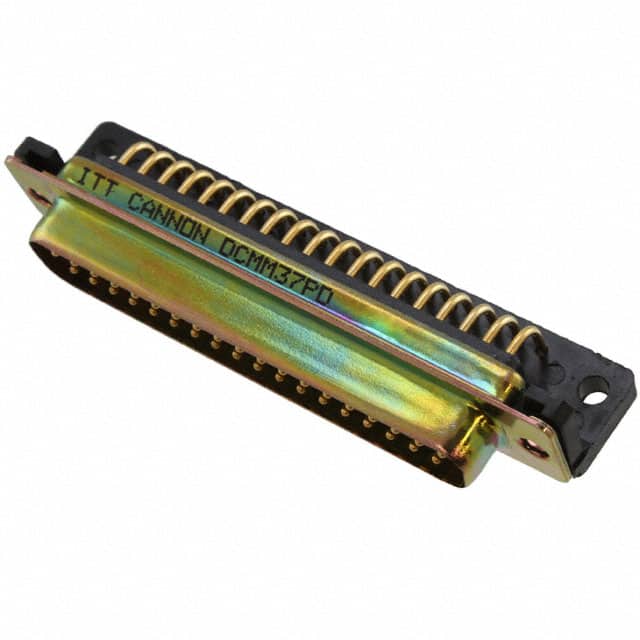

The DCMM-37P-D is a 37-position D-Sub plug connector from ITT Cannon's D*M series. It features male pins with gold over nickel contact finish (50µin) for reliable signal transmission. The connector is designed for panel mount with through hole right angle solder termination. It has a steel shell with tin plating and a thermoplastic insulator rated UL94 V-0. Electrical ratings include 7.5A maximum current and 1000VAC dielectric withstanding voltage at sea level. Contact resistance is 7.5 mΩ max. Operating temperature range is -55°C to +150°C. The connector supports wire gauge AWG 20-28 and is rated for 500 mating cycles. It includes mounting brackets and a housing/shell unthreaded flange feature. This connector is suitable for industrial and commercial applications requiring a robust D-Sub interface.
37 positions.
7.5A maximum.
Panel mount, through hole, right angle.
1000VAC at sea level.
-55°C to +150°C.
Gold over nickel, 50µin thickness.
Yes, RoHS3 compliant.
