| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

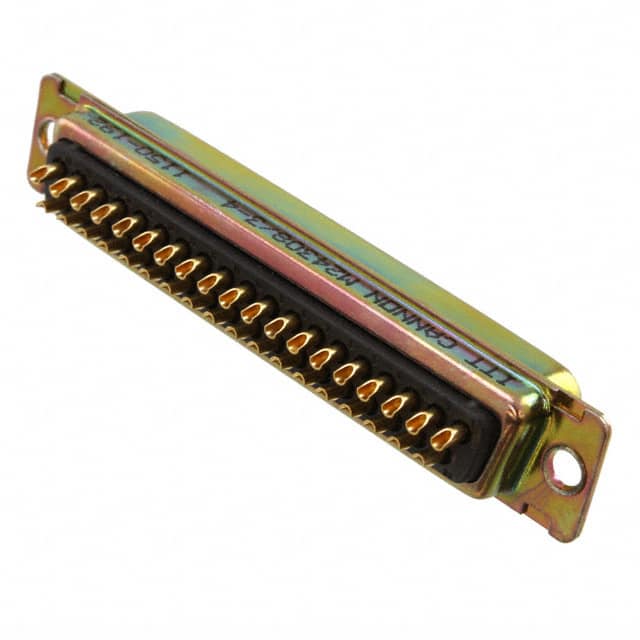

The ITT Cannon DCMM-37P is a high-reliability D-Sub connector from the D*M series, designed for demanding industrial applications. This plug connector features 37 size 20 contacts arranged in 2 rows, with a shell size of 4 (DC, C). The contacts are made of copper alloy with a gold over nickel finish (Performance Class 2) with 50.0µin plating thickness, ensuring low contact resistance of 7.5 milliohms maximum.
The connector is rated for 7.5A maximum current per contact and can withstand 1000 VAC at sea level. It operates over a wide temperature range of -55°C to +150°C, with a minimum of 500 mating cycles. The insulator is made of black thermoplastic (PCT) with UL 94V-0 flammability rating, and the steel shell has a tin finish. The mounting style is panel mount with a housing/shell (unthreaded) flange feature and 0.120 inch through hole hardware.
Termination is via solder pots, accepting 20-28 AWG wire. The connector has passed a 48-hour salt spray test, indicating good environmental resistance. This part is RoHS3 compliant and REACH unaffected, with an MSL rating of Level 1. The cross-reference DigiKey part number is 1003-1794-ND and global manufacturing number is 051524-0000.
It has 37 positions arranged in 2 rows.
Maximum 7.5A per contact.
Rated for 1000 VAC dielectric withstanding voltage at sea level.
Panel mount with unthreaded flange and 0.120 inch through hole hardware.
-55°C to +150°C.
Solder pot termination, compatible with 20-28 AWG wire.
Copper alloy contacts with gold over nickel finish (50.0µin).
