| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mating Cycles | |
| Military Standard | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

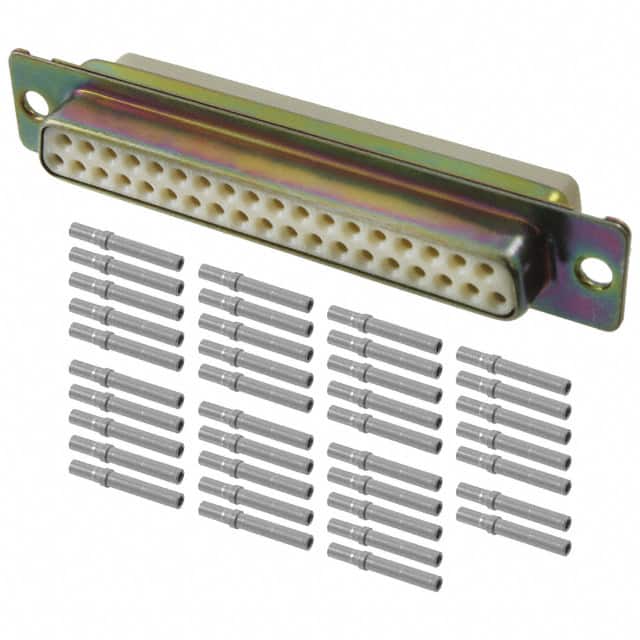

The DCMA-37S is a 37-position D-Sub receptacle from ITT Cannon, part of the D*MA series designed according to MIL-DTL-24308. It features female sockets arranged in 2 rows with a shell size of 4 (DC, C). The connector is panel mounted with an unthreaded flange and uses crimp termination for secure wire attachment. Contacts are signal type with gold finish, rated for 7.5A per contact. The shell is made of steel with tin plating, providing durability and EMI shielding. The insulator material has a flammability rating of UL94 V-0. Mating cycles are specified as 200 to 500 cycles depending on contact type. This connector is suitable for military, aerospace, and industrial applications requiring high reliability.
37 positions.
7.5 A per contact.
Panel mount.
2 rows.
Crimp termination.
Gold.
Yes, it is designed according to MIL-DTL-24308.
