| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

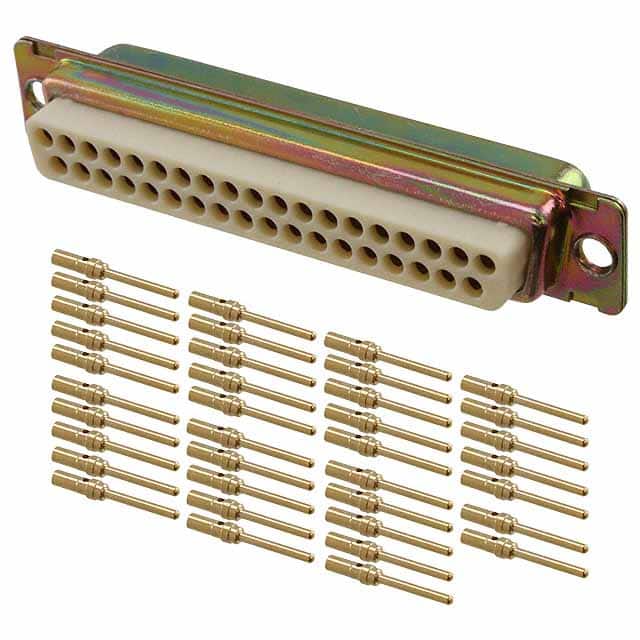

The DCMA-37P from ITT Cannon is a 37-position D-Sub connector plug with male pins. It is designed for panel mount installation and utilizes crimp termination for secure wire connections. The connector has a shell size of 4 (DC, C) and features a standard D-Sub interface.
This connector is rated for a current of 7.5 A per contact. The contacts are signal type with a gold finish for reliable conductivity. The shell is made of steel with tin plating, providing durability and corrosion resistance. The housing material has a flammability rating of UL94 V-0 for safety in electronic assemblies.
The panel mount design includes a housing/shell unthreaded flange feature for easy installation. The connector uses two rows of contacts. The D-Sub style is widely used in data, telecommunications, and industrial applications.
The DCMA-37P is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is designed in accordance with MIL-DTL-24308 standards, ensuring high reliability.
37 positions.
7.5 A per contact.
Panel mount.
Crimp termination.
Steel, tin plated.
UL94 V-0.
Gold.
