| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Layout | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

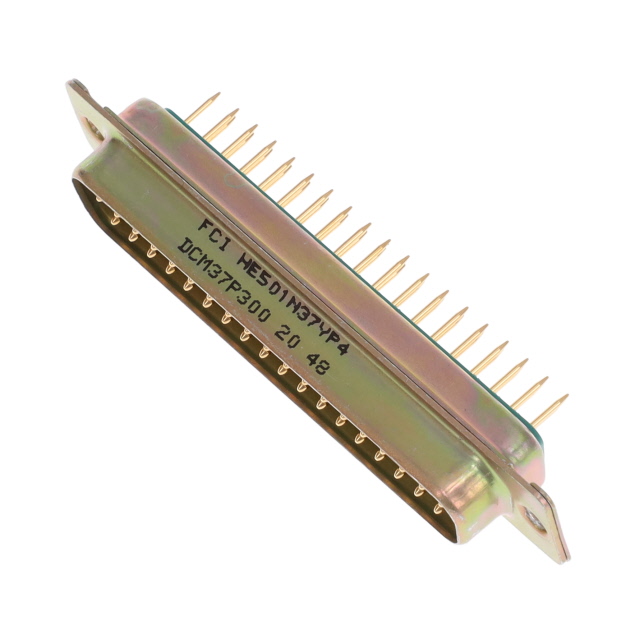

The DCM37P300N is a D-Sub plug connector from Amphenol ICC featuring 37 male pin contacts arranged in 2 rows. It is designed for through hole mounting with solder termination, making it suitable for permanent board-level connections.
Electrical specifications include a current rating of 7.5 A per contact with gold plated signal contacts for reliable conductivity. The connector uses a steel shell with yellow cadmium plating and a shell size of 4 (DC, C layout). The flange feature is housing/shell unthreaded.
The insulator material has a UL94 V-0 flammability rating. This connector is RoHS3 compliant and REACH unaffected with an MSL of 1 (unlimited). It is commonly used in industrial, data communication, and instrumentation applications requiring a robust 37-position interface.
The DCM37P300N has 37 positions arranged in 2 rows.
This connector uses through hole mounting with solder termination.
The current rating is 7.5 A per contact.
The shell is steel with yellow cadmium plating.
The insulator material has a UL94 V-0 flammability rating.
