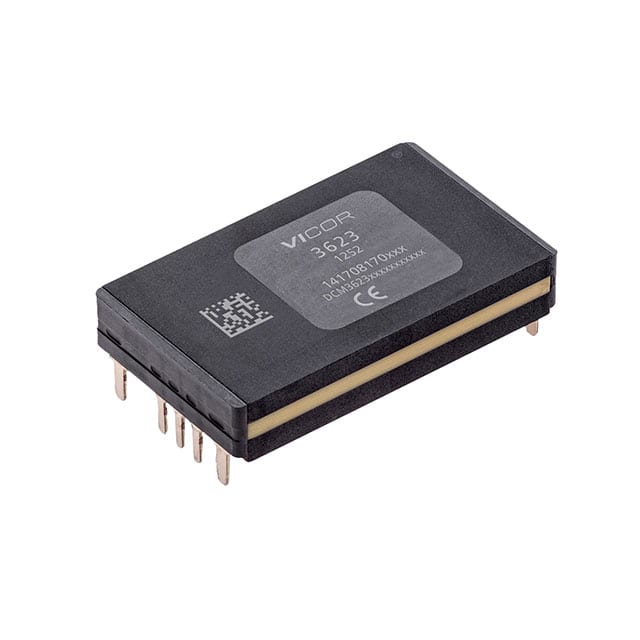

DCM3623T36G26C2T00 Isolated, regulated DC-DC converter from Vicor. Provides 24V output at 13.4A (321.6W) from an 18-36V input with 92.2% peak efficiency.
Mfr Part #:

DCM3623T36G26C2T00

Available from 1 distributors
Mfr Name: Vicor
Vicor
Isolated, regulated DC-DC converter from Vicor. Provides 24V output at 13.4A (321.6W) from an 18-36V input with 92.2% peak efficiency.
✓ Total Stock: 35 pcs
$ Price Range: $201.56

DCM3623T36G26C2T00 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
35 pcs
On Request
35 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DCM3623T36G26C2T00 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Output Current
Package / Case
Power (Watts)
Termination Style
Type
Voltage
Weight
Width
View Similar Products (0)

DCM3623T36G26C2T00 Description

Short technical summary and product information.

The Vicor DCM3623T36G26C2T00 is an isolated, regulated DC-DC converter part of the DCM series. It operates from a wide input voltage range of 18V to 36V and delivers a nominal output of 24V at up to 13.4A, providing 321.6W of power (320W rated). The converter achieves a peak efficiency of 92.2% using zero-voltage switching (ZVS) topology, enabling high power density of 823W/in³.



This through-hole module comes in a 9-DIP package measuring 38.7mm x 22.8mm x 7.3mm and weighing 24g. It features 2250VDC input-to-output isolation and includes protection features such as overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), short-circuit (SCP), and undervoltage lockout (UVLO). The module is designed for array operation with up to 8 units for 2560W total without power derating.



Typical applications include industrial, process control, transportation/heavy equipment, and defense/aerospace systems. The ChiP packaging technology allows for flexible thermal management with low top and bottom side thermal impedances.

DCM3623T36G26C2T00 Quick Information

Product Type: DC-DC Converter
Canonical Name: Vicor DCM3623T36G26C2T00 DC-DC Converter
Subcategory: Board Mount DC-DC Converters

DCM3623T36G26C2T00 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DCM3623T36G26C2T00 Estimated Pricing

Qty Low High
25+ $201.56 $201.56

Estimated market price range - modelled values for guidance only, not live distributor offers.

DCM3623T36G26C2T00 Features

  • Wide input voltage range 18V to 36V.
  • High efficiency up to 92.2%.
  • 2250VDC input-to-output isolation.
  • Through-hole 9-DIP package.
  • Integrated protection features OCP, OTP, OVP, SCP, UVLO.

DCM3623T36G26C2T00 Applications

  • Ideal for industrial power systems.
  • Used in process control equipment.
  • Suitable for transportation and heavy equipment.
  • Designed for defense and aerospace applications.

DCM3623T36G26C2T00 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

18V to 36V.

What is the output voltage?

24V nominal.

What is the maximum output current?

13.4A.

What is the isolation voltage?

2250VDC.

What is the operating temperature range?

-40°C to 125°C.

What is the package type?

9-DIP Module, through-hole.

Is the DCM3623T36G26C2T00 RoHS compliant?

Yes, RoHS3 compliant.
