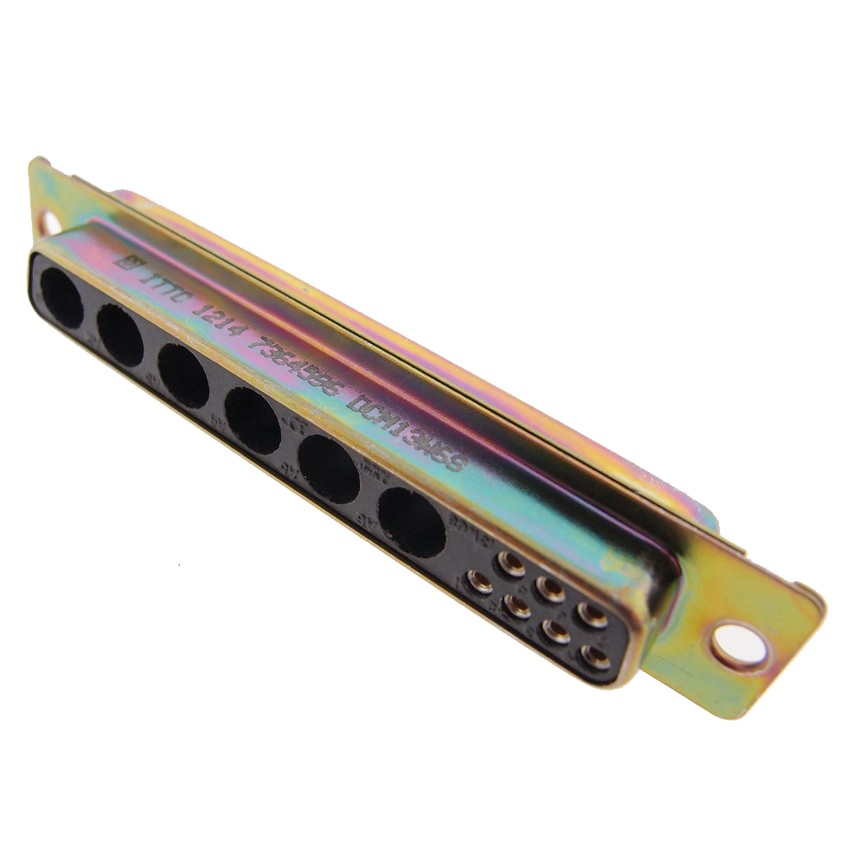

DCM13W6S ITT Cannon DCM13W6S is a D-Sub Combo receptacle with 13 positions (7 signal + 6 coax or power), panel mount, and solder cup termination. It features gold flash contacts and a steel shell with yellow chromate finish.
Mfr Part #:

DCM13W6S

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
ITT Cannon DCM13W6S is a D-Sub Combo receptacle with 13 positions (7 signal + 6 coax or power), panel mount, and solder cup termination. It features gold flash contacts and a steel shell with yellow chromate finish.
✓ Total Stock: 1 pcs
$ Price Range: $33.10

DCM13W6S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DCM13W6S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Resistance
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Features
Flange Feature
Gender
Insulator Material
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Style
View Similar Products (0)

DCM13W6S Description

Short technical summary and product information.

The DCM13W6S is a D-Sub Combo receptacle from ITT Cannon, designed for mixed signal and power applications. It features 13 positions arranged as 7 signal contacts and 6 cavities for coaxial or power contacts, with a 2-row layout. The connector uses a panel mount with an unthreaded flange and solder cup termination, enabling secure field wiring. Contacts are made of copper alloy with gold flash plating (Performance Class 3), providing low contact resistance of 10 mOhm maximum and a current rating of 7.5 A per signal contact. The steel shell is finished with yellow chromate over zinc, offering corrosion resistance as verified by a 20-hour salt spray test. The insulator is molded from thermoplastic UL 94V-0 rated material, and the connector is shielded. Operating temperature ranges from -55°C to +125°C, with a dielectric withstanding voltage of 500 VAC at sea level. The connector supports wire gauges from 8 to 26 AWG and is rated for 50 mating cycles. Typical applications include industrial control, aerospace, and data communication equipment where mixed contact configurations are required.

DCM13W6S Quick Information

Product Type: D-Sub Combo Receptacle
Series: COMBO D
Canonical Name: ITT Cannon DCM13W6S D-Sub Combo Receptacle, Female Sockets, 13 (7 + 6 Coax or Power) Positions, Panel Mount, Solder Cup
Subcategory: D-Sub Combo Connectors

DCM13W6S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DCM13W6S Estimated Pricing

Qty Low High
1+ $33.10 $33.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

DCM13W6S Features

  • 13 positions with 7 signal and 6 coax/power cavities.
  • Panel mount with solder cup termination.
  • Gold flash contacts for low contact resistance.
  • Rated for 7.5A per signal contact.
  • Operating temperature range -55°C to +125°C.

DCM13W6S Applications

  • Ideal for mixed signal and power connections.
  • Used in industrial control panels and equipment.
  • Suitable for aerospace and defense applications.
  • Common in data communication and networking gear.

DCM13W6S FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DCM13W6S have?

13 positions arranged as 7 signal contacts and 6 coaxial or power cavities.

What is the current rating of the DCM13W6S?

7.5 A maximum per signal contact.

What is the dielectric withstanding voltage?

500 VAC at sea level.

What is the mounting type?

Panel mount with unthreaded flange.

What is the operating temperature range?

-55°C to +125°C.

What is the contact material?

Copper alloy with gold flash plating.

What wire gauge range is suitable?

8 to 26 AWG.
