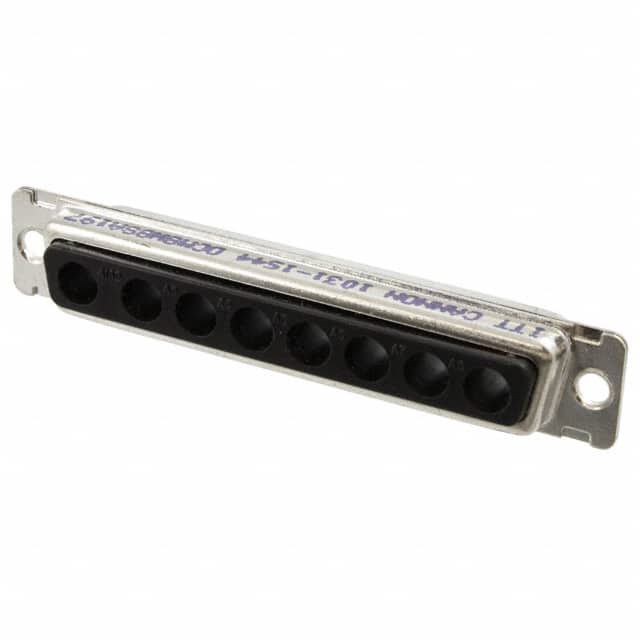

The DCM-8W8S-A197 is a D-Sub combo receptacle housing from ITT Cannon's COMBO D series. It is designed to accept female coax or power contacts (solder pot type) in a single-row 8W8 contact arrangement (8 size 8 cavities). The housing is panel mount with two unthreaded flange holes for mounting.
Key specifications: Shell material is steel with tin plating, providing shielding and durability. The insulator is black thermoplastic (PCT, UL 94V-0). Contacts are copper alloy with gold flash (Performance Class 3). Wire gauge range is 8-26 AWG. The mounting method uses .120" (3.05mm) through hole. Rated for 50 mating cycles.
Electrical characteristics: Current rating for signal contacts is 7.5 A maximum. Contact resistance is 10 mOhm maximum. Dielectric withstanding voltage is 500 VAC at sea level. Operating temperature range is -55°C to +125°C. Salt spray test duration is 20 hours.
This housing is suitable for applications requiring mixed signal and power connections in a compact D-Sub form factor. It is RoHS3 compliant, REACH unaffected, and MSL 1 (unlimited). The part number DCM-8W8S-A197 corresponds to the A197 variant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.95 | $3.95 |
| 210+ | $1.58 | $1.58 |
| 504+ | $1.53 | $1.53 |
| 1,008+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions for coax or power contacts.
7.5 A maximum for signal contacts.
500 VAC at sea level.
Panel mount with .120 inch (3.05 mm) through hole mounting method.
Steel, tin plated.
-55°C to +125°C.
8W8 (8 empty size 8 cavities).
