| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Arrangement | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flammability Rating | |
| Flange Feature | |
| Gender | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Salt Spray Test Duration | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Wire Gauge Range |

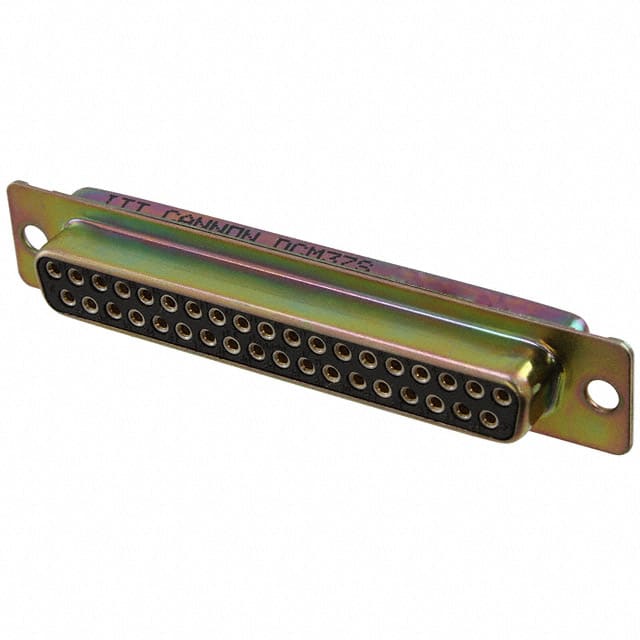

The DCM-37S is a high-reliability D-Sub receptacle connector from ITT Cannon, part of the D*M series. It features 37 female socket contacts arranged in two rows, with a panel mount design and unthreaded flange for secure installation. Termination is via solder cup, accommodating wire gauges from 20 AWG to 28 AWG.
Electrical specifications include a maximum current rating of 7.5A per contact, contact resistance of 7.5 mOhm, and dielectric withstanding voltage of 1000 VAC at sea level. The operating temperature range is -55°C to +125°C, ensuring performance in harsh environments. The shell is made of steel with a yellow chromate over zinc finish, providing corrosion resistance as verified by a 20-hour salt spray test.
The insulator is black thermoplastic PCT, rated UL94 V-0 for flammability. Contacts are copper alloy with gold over nickel finish, rated for 200 mating cycles. This connector is suitable for industrial, telecommunications, and military applications where dependable signal transmission is required.
The DCM-37S has 37 positions in a 2-row configuration.
The maximum current rating is 7.5 A per contact.
The dielectric withstanding voltage is 1000 VAC at sea level.
It is designed for panel mount with an unthreaded flange.
The operating temperature range is -55°C to +125°C.
The wire gauge range is 20 AWG to 28 AWG.
The contacts are finished with gold over nickel.
