| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
73 pcs
|
73 pcs | On Request | 1 | On Request | On Request | 10 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Lead Count | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

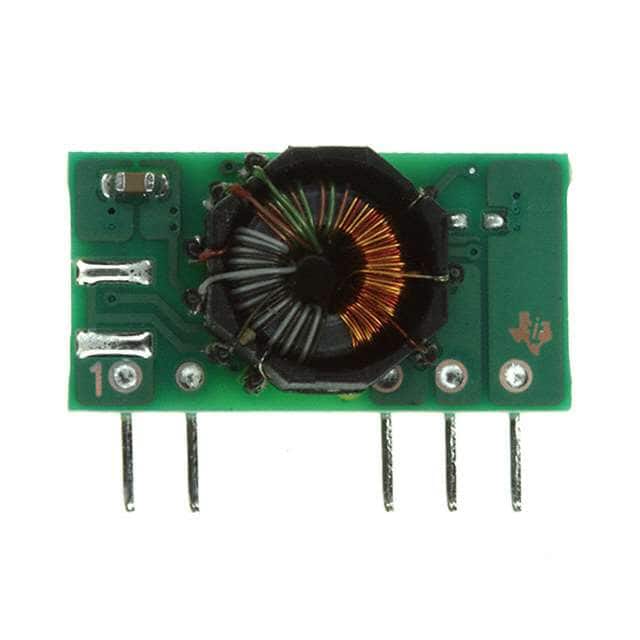

The Texas Instruments DCH010512DN7 is an isolated DC DC converter module designed for commercial ITE applications. It delivers dual ±12V outputs, each rated at 42mA, for a total output power of 1W. The converter achieves 75% efficiency and operates over a wide temperature range from -40°C to 85°C.
This module comes in a compact 7-SIP package with 5 leads and through-hole mounting, measuring 19.6mm x 7.6mm x 10.2mm. The isolated module topology provides galvanic isolation between input and output, making it suitable for noise-sensitive applications.
The DCH010512DN7 is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited floor life). It is intended for use in commercial ITE equipment where a regulated dual ±12V supply is required from a single input voltage.
The DCH010512DN7 provides dual ±12V outputs.
Each output is rated at 42mA.
The total output power is 1W.
The operating temperature range is -40°C to 85°C.
It comes in a 7-SIP Module with 5 leads, through-hole mounting.
Yes, it is RoHS3 compliant.
The efficiency is 75%.
