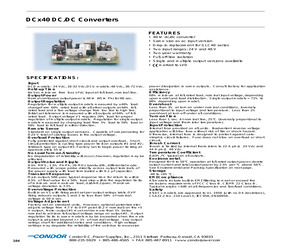

This DCD40B DC DC converter from SL Power Electronics (manufactured under Condor/Ault brands) provides a continuous output power of 40W, with a peak power of 45W for up to 60 seconds. It is designed for ITE (Commercial) applications and features an open frame construction suitable for chassis mounting.
The converter accepts an input voltage range of 18-32 Vdc. It offers three outputs: +5.1V at 4A, +15V at 2A, and -15V at 400mA. Key electrical specifications include a minimum efficiency of 68% at full load and nominal input voltage, a hold-up time of 6 mSec minimum, and output noise and ripple of 0.5% RMS / 1.5% Pk-Pk.
Protection features include fully protected short circuit and output overload protection, with power limiting starting around 55W. Overvoltage protection is built into the V1 output. The unit has a typical transient response time of 500 µsec for a 50% load step. Remote sense is standard on single-output versions.
Mechanically, the unit measures 126.0mm x 75.2mm x 30.5mm. The operating temperature range is 0°C to 50°C. The DCD40B is CE approved.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 18-32 Vdc.
The outputs include 5.1V, 15V, and -15V.
The maximum continuous output power is 40W.
The efficiency is at least 68% at full rated load.
It is fully protected against short circuit and output overload, with built-in overvoltage protection on V1.
It measures 126mm by 75.2mm by 30.5mm.
