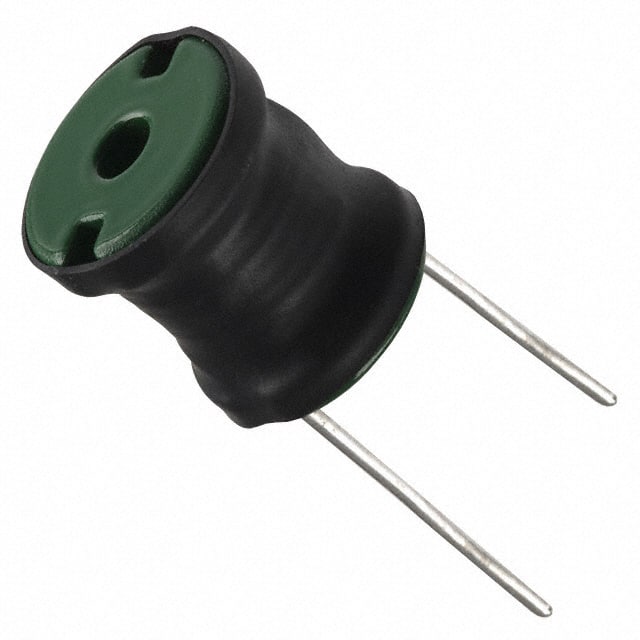

DC780-103K The API Delevan Inc. DC780-103K is a fixed inductor with a drum core and wirewound construction. It offers 10 µH inductance and a current rating of 11.4A.
Mfr Part #:

DC780-103K

Available from 1 distributors
Mfr Name: API Delevan Inc.
API Delevan Inc.
The API Delevan Inc. DC780-103K is a fixed inductor with a drum core and wirewound construction. It offers 10 µH inductance and a current rating of 11.4A.
✓ Total Stock: 66 pcs

DC780-103K Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DC780-103K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Diameter
Height
Inductance
Material
Mounting Type
Operating Temperature
Shielding
Tolerance
Type
View Similar Products (0)

DC780-103K Description

Short technical summary and product information.

The API Delevan Inc. DC780-103K is a fixed inductor designed for through-hole mounting. It features a drum core and wirewound construction, providing a reliable component for various electronic applications.



Key electrical specifications include an inductance of 10 µH with a tolerance of ±10%. The inductor can handle a current rating of 11.4A and has a saturation current of 34.5A. Its DC resistance (DCR) is a maximum of 9 mOhm. The operating temperature range is from -55°C to 125°C.



Mechanically, the component is housed in a radial, vertical cylinder package. Its dimensions are a height of 21.10mm and a diameter of 19.60mm. The inductor is unshielded and made of ferrite material.



Environmental compliance includes RoHS3 compliance and an MSL of 1. REACH status is unaffected.

DC780-103K Quick Information

Product Type: Fixed Inductor
Canonical Name: API Delevan Inc. DC780-103K Drum Core, Wirewound Inductor
Subcategory: Fixed Inductor

DC780-103K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DC780-103K Features

  • 10 µH inductance with ±10% tolerance.
  • Rated for 11.4A continuous current.
  • Low 9 mOhm maximum DC resistance.
  • Wide -55°C to 125°C operating temperature.
  • Through-hole mounting, radial cylinder package.

DC780-103K Applications

  • Suitable for power supply filtering.
  • Used in DC-DC converter circuits.
  • Ideal for general purpose inductors.
  • Applicable in signal processing circuits.

DC780-103K FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the DC780-103K?

The inductance of the DC780-103K is 10 µH.

What is the current rating for the DC780-103K?

The current rating for the DC780-103K is 11.4 A.

What is the DC resistance (DCR) of this inductor?

The DC resistance (DCR) is a maximum of 9 mOhm.

What is the tolerance of the DC780-103K inductor?

The tolerance for the DC780-103K is ±10%.

What is the operating temperature range for the DC780-103K?

The operating temperature range is -55°C to 125°C.

How is the DC780-103K mounted?

The DC780-103K is designed for through-hole mounting.

What type of inductor is the DC780-103K?

The DC780-103K is a drum core, wirewound inductor.
