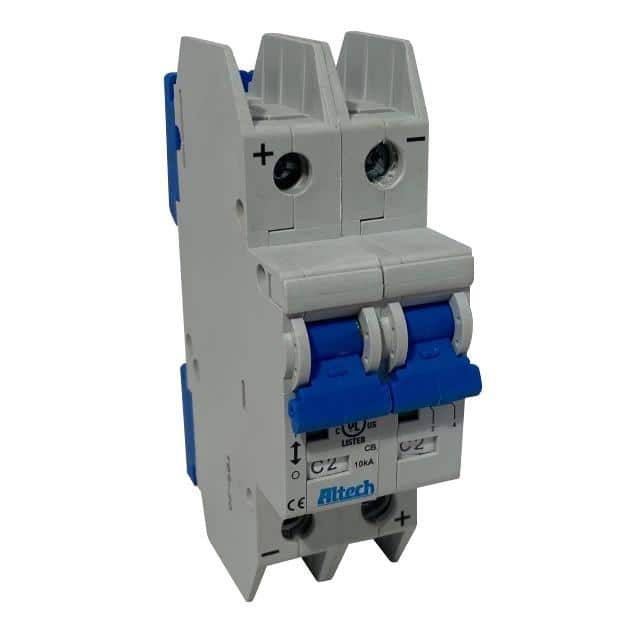

This Altech Corporation DC2CR2L is a miniature molded case circuit breaker designed for DC applications. It is a 2-pole unit with a thermal magnetic trip mechanism, rated for 2A and 250VDC.
The breaker features a lever actuator for easy operation and is designed for DIN rail mounting, making it suitable for panel installations. It is UL489 listed, indicating compliance with safety standards for circuit breakers.
Key specifications include an interrupting capacity of 10kA, calibration temperature of 40°C, and an ambient operating temperature range of -25°C to 60°C. The mechanical life is rated for 10,000 cycles, and electrical life for 6,000 cycles.
Additional features include terminal protection rated at IP20 and mounting orientation in any plane. This circuit breaker is suitable for various industrial and commercial applications requiring reliable overcurrent protection in DC circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Altech DC2CR2L circuit breaker is rated for 2A.
The Altech DC2CR2L circuit breaker is rated for 250VDC.
The Altech DC2CR2L circuit breaker has 2 poles.
The Altech DC2CR2L is a thermal magnetic circuit breaker.
The Altech DC2CR2L circuit breaker is designed for DIN rail mounting.
The interrupting capacity of the DC2CR2L circuit breaker is 10kA.
The Altech DC2CR2L operates in an ambient temperature range of -25°C to 60°C.
