Mfr Part #:

DC2815A

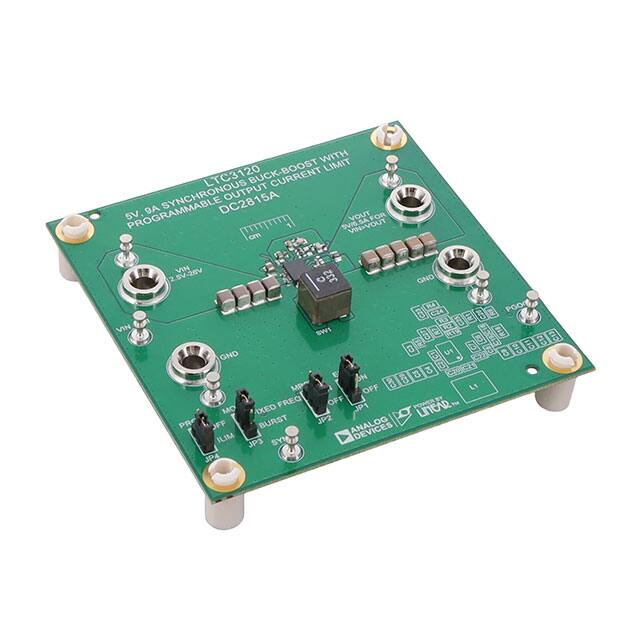

Name: DC2815A
Brand: Analog Devices Inc./Maxim Integrated
SKU: DC2815A

Description:

26V 9A SYNC BUCK-BOOST DEMO BOAR

Stock on Request

DC2815A Description

Short technical summary and product information.

26V 9A SYNC BUCK-BOOST DEMO BOAR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Evaluation Boards - DCDC & ACDC (Off-Line) SMPS
Manufacturer Name	Analog Devices Inc./Maxim Integrated
Board Type	Fully Populated
Current	6.5A
Frequency	1MHz
Main Purpose	DC/DC, Step Up or Down
Outputs and Type	1, Non-Isolated
Regulator Topology	Buck-Boost
Supplied Contents	Board(s)
Utilized IC	LT3120
Voltage	2.5V ~ 26V
