| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:33:31 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Climatic Category | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ Between L-N) | |
| Dielectric Strength (Minimum @ Between L/N-PE) | |
| Features | |
| Filter Type | |
| Ingress Protection | |
| MTBF | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Panel Thickness (Minimum/Maximum @ Snap-in mounting) | |
| Protection Class | |
| Switch Features | |
| Termination | |
| Voltage Rating | |
| leakage_current (Maximum @ Medical) | |
| leakage_current (Maximum @ Standard) | |
| panel_thickness (Maximum @ Screw mounting) |

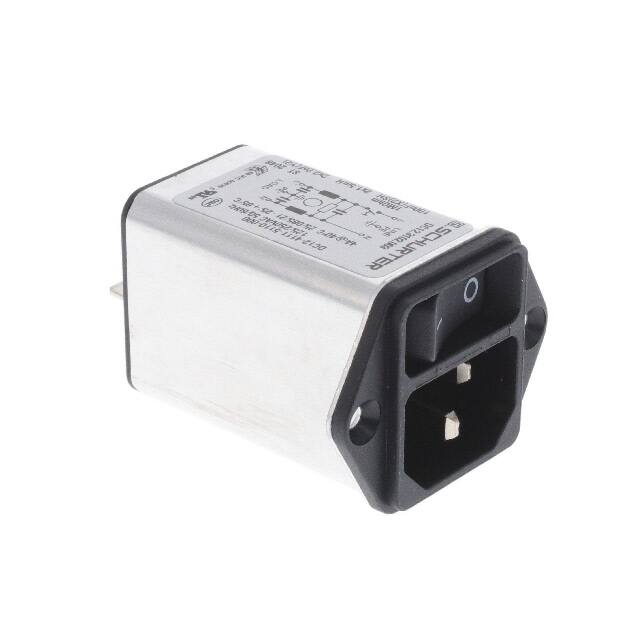

The Schurter DC12.3102.003 is a compact power entry module combining an IEC 320-C14 inlet, a 1-pole on-off switch, and an EMI/RFI line filter in a single unit. It is designed for panel mounting with screw or snap-in options and features quick connect terminals (0.250" / 6.3mm). The module is rated for 4A at 250VAC and provides standard leakage current <0.5 mA (medical version <5 µA).
This filtered power entry module is suitable for applications requiring electromagnetic interference suppression. It includes a V-Lock notch for cord retention and is shielded for optimal EMI performance. The housing is made of UL94 V-0 rated material and offers IP40 ingress protection.
The module supports protection class I or II and has a wide operating temperature range of -25°C to 85°C. It is approved by CQC, cULus, and ENEC, making it suitable for global use. The DC12 series is ideal for use in medical equipment (IEC/UL 60601-1) and IT/AV equipment (IEC/UL 62368-1) with appropriate variants.
Mounting options include screw-on from front or rear side and snap-in from front side. The panel cutout is rectangular 29.10mm x 33.10mm. The module does not accommodate a fuse. With a high MTBF of >1,900,000 hours, it offers reliable long-term performance.
3 positions (line, neutral, ground).
4A at 250VAC.
250VAC.
Panel mount with screw-on (front or rear) or snap-in (front) options.
Yes, it includes a commercial EMI/RFI filter.
Yes, it includes a 1-pole on-off switch.
CQC, cULus, ENEC.
