| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:18:49 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum @ L-N) | |
| Dielectric Strength (Minimum @ L/N-PE) | |
| Features | |
| Filter Type | |
| Fuse Accommodation | |
| Ingress Protection | |
| Leakage Current (Maximum @ 250V/60Hz) | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Switch Features | |
| Termination | |
| Voltage Rating |

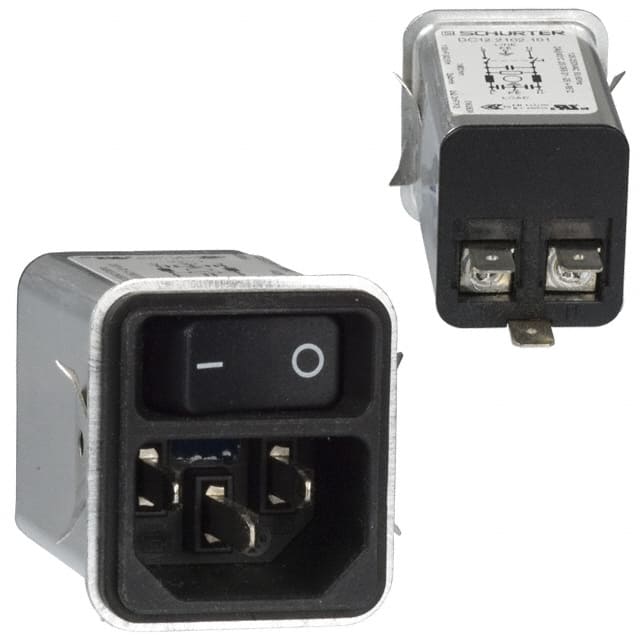

The Schurter DC12.2102.101 is a compact power entry module combining an IEC 320-C14 appliance inlet, EMI/RFI line filter, and a single-pole on-off switch in one unit. Rated for 2A at 250VAC, it provides reliable power entry and filtering for commercial equipment. The module features a panel mount snap-in design for easy front-side installation and quick connect terminals (0.250" / 6.3mm) for secure wiring.
Electrical specifications include a leakage current of less than 0.5 mA at 250V/60Hz, dielectric strength greater than 1.7 kVDC between line and neutral, and greater than 2.7 kVDC between line/neutral and ground. The operating temperature range is -25°C to 85°C. The housing is rated UL94 V-0 for flammability, and the module offers protection class I or II.
Mechanical features include a rectangular panel cutout of 29.40mm x 33.10mm, accommodating panel thickness from 1.00mm to 3.00mm. The unit is shielded and includes a V-Lock notch for use with latching cordsets to prevent accidental disconnection. It does not accommodate a fuse.
Approvals include CQC, cULus, and ENEC. The module is RoHS3 and REACH compliant. It is suitable for use in IT, telecom, industrial, and medical equipment (1 MOOP/1 MOPP) according to IEC/UL 60601-1.
2A.
250 VAC.
Panel mount, snap-in.
3 positions.
Yes, a filtered (EMI, RFI) commercial filter.
CQC, cULus, ENEC.
-25°C to 85°C.
