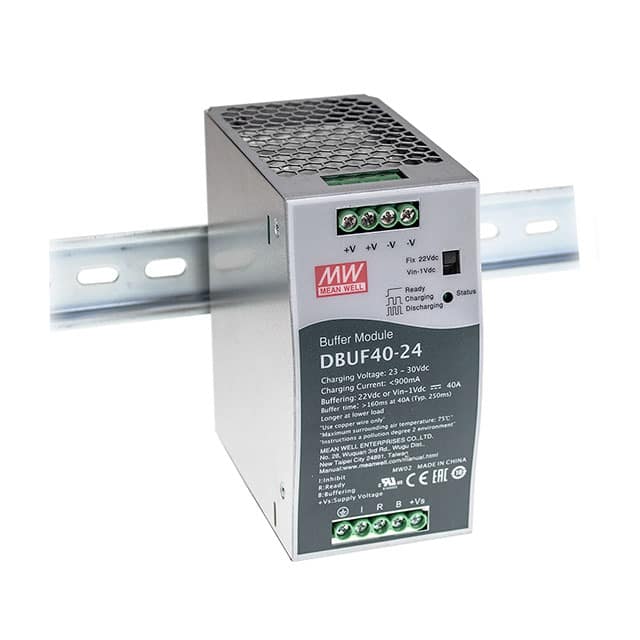

The Mean Well DBUF40-24 is a 40A DIN Rail Mount Buffer Module designed for use with 24V power supplies. This module serves as an ideal low-cost solution for short-term UPS systems, utilizing capacitors instead of batteries. This design makes it smaller, more cost-effective, and maintenance-free compared to traditional battery-based UPS units.
The DBUF40-24 offers a typical buffering time of 250ms at 22VDC and 40A. For applications requiring longer buffering times, multiple units can be connected in parallel. The module is designed for DIN rail mounting, facilitating easy integration into industrial control systems. Its electronic buffering capability ensures a stable power supply during brief interruptions.
Key specifications include a nominal output voltage of 24VDC and a nominal output current of 40A. The module's construction and capacitor-based operation contribute to a faster response time than battery UPS systems. It is suitable for applications where brief power continuity is critical.
The DBUF40-24 has a nominal output voltage of 24 VDC.
The DBUF40-24 has a nominal output current of 40 A.
The DBUF40-24 provides a typical buffering time of 250 ms at 22VDC and 40A.
The DBUF40-24 is designed for DIN Rail mounting.
The DBUF40-24 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the DBUF40-24 is 1 Unlimited.
The DBUF40-24 is REACH Unaffected.
