Mfr Part #:

DBMZ-25S-N-A197

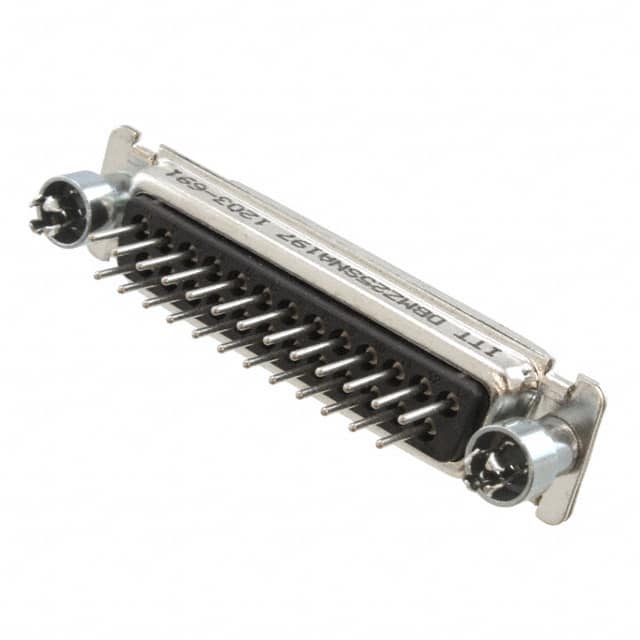

Name: DBMZ-25S-N-A197
Brand: ITT Cannon
SKU: DBMZ-25S-N-A197

Mfr Name: ITT Cannon

Description:

CONN D-SUB RCPT 25P PNL MNT SLDR

Stock on Request

DBMZ-25S-N-A197 Description

Short technical summary and product information.

CONN D-SUB RCPT 25P PNL MNT SLDR

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

DBMZ25SNK126

ITT Cannon

CONN D-SUB RCPT 25P PNL MNT SLDR

DBMMZ25SNA197

ITT Cannon

CONN D-SUB RCPT 25P PNL MNT SLDR

ITT Cannon

CONN D-SUB RCPT 25P PNL MNT SLDR

Category	D-Sub Connector Assemblies
Manufacturer Name	ITT Cannon
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Type	Signal
Current Rating (Amps)	7.5A
Features	Board Lock
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions	25
Number of Rows	2
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	3 (DB, B)
Termination	Solder
