| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

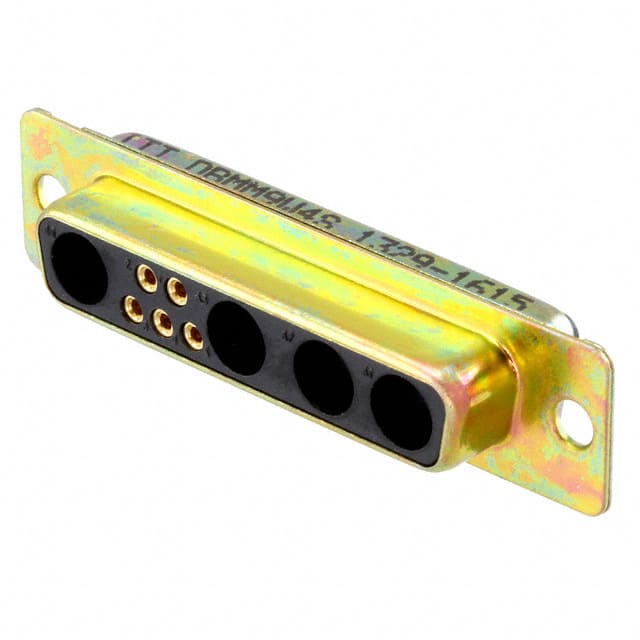

The ITT Cannon DBMM-9W4S is a D-Sub Combo receptacle connector designed for applications requiring mixed signal and power or coax contacts. It features a 9-position layout (5 signal positions plus 4 coax or power positions) in a 2-row arrangement within a standard DB-9W4 shell size. The connector is panel mounted and terminated via solder cups, providing reliable and serviceable connections.
The shell is constructed from steel with a yellow chromate plated zinc finish, offering durability and corrosion resistance. The connector is shielded for EMI protection. Contacts are gold plated with a thickness of 1.27 µm, ensuring low contact resistance and high mating cycle life. The insulator material is rated UL94 V-0 for flammability.
This connector is suitable for industrial, telecommunications, and instrumentation equipment where a compact mixed-signal interface is required. Contacts are not included and must be ordered separately.
Receptacle, Female Sockets; D-Sub, Combo.
9 positions: 5 signal plus 4 coax or power.
Panel mount with solder cup termination.
7.5 A per contact.
Steel, yellow chromate plated zinc.
Yes, it is shielded.
UL94 V-0.
