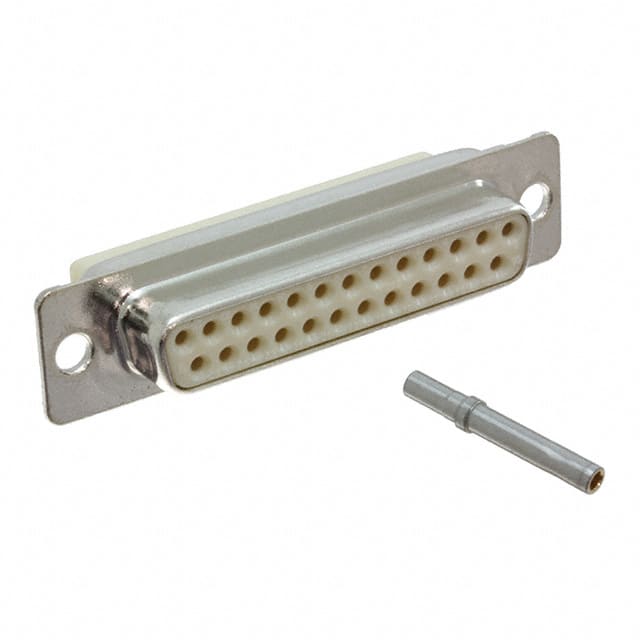

DBMA25SA197 ITT Cannon DBMA25SA197 is a 25-position D-Sub receptacle with female sockets, designed for panel mount and crimp termination. It features a steel shell with tin-nickel plating and gold contacts.
Mfr Part #:

DBMA25SA197

Available from 1 distributors
Mfr Name: ITT Cannon
ITT Cannon
ITT Cannon DBMA25SA197 is a 25-position D-Sub receptacle with female sockets, designed for panel mount and crimp termination. It features a steel shell with tin-nickel plating and gold contacts.
✓ Total Stock: 9 pcs

DBMA25SA197 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DBMA25SA197 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Contact Finish
Contact Type
Current Rating
Current Rating (Amps)
Flange Feature
Material Flammability Rating
Mounting Type
Number of Positions
Number of Rows
Shell Material, Finish
Shell Size, Connector Layout
Termination
View Similar Products (0)

DBMA25SA197 Description

Short technical summary and product information.

The DBMA25SA197 from ITT Cannon is a 25-position D-Sub receptacle connector designed for panel mount applications. It features a steel shell with a tin-nickel plated finish, providing durability and corrosion resistance. The contacts are gold-plated signal contacts, ensuring reliable electrical performance. The connector uses a crimp termination method, allowing for flexible wire attachment. It is rated for a continuous current of 7.5A per contact. The insulator material meets UL94 V-0 flammability rating, making it suitable for safety-critical environments. The flange feature is housing/shell (unthreaded), and the shell size is 3 (DB, B) with a 2-row layout. This connector is part of ITT Cannon's D-Subminiature product line, designed to meet MIL-DTL-24308 standards.

DBMA25SA197 Quick Information

Product Type: D-Sub Connector Assembly
Canonical Name: ITT Cannon DBMA25SA197 D-Sub Receptacle, Female Sockets, 25 Position, Panel Mount, Crimp Termination
Subcategory: D-Sub Connector Assemblies

DBMA25SA197 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DBMA25SA197 Features

  • Panel mount D-Sub receptacle with 25 positions.
  • Crimp termination for reliable wire connections.
  • Gold-plated signal contacts for low resistance.
  • Steel shell with tin-nickel plating for durability.
  • Rated for 7.5A continuous current per contact.

DBMA25SA197 Applications

  • Used in industrial control and automation equipment.
  • Ideal for data communication and serial interfaces.
  • Suitable for aerospace and defense interconnect systems.
  • Common in test and measurement instrumentation.

DBMA25SA197 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the DBMA25SA197 have?

It has 25 positions.

What is the current rating of this connector?

The current rating is 7.5A per contact.

What is the mounting type for the DBMA25SA197?

It is a panel mount connector.

What termination method is used?

The termination method is crimp.

What is the contact finish?

The contacts are gold-plated.

Is the DBMA25SA197 RoHS compliant?

Yes, it is RoHS3 compliant.

What is the shell material?

The shell is made of steel with tin-nickel plating.
