| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Layout | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Wire Gauge Range |

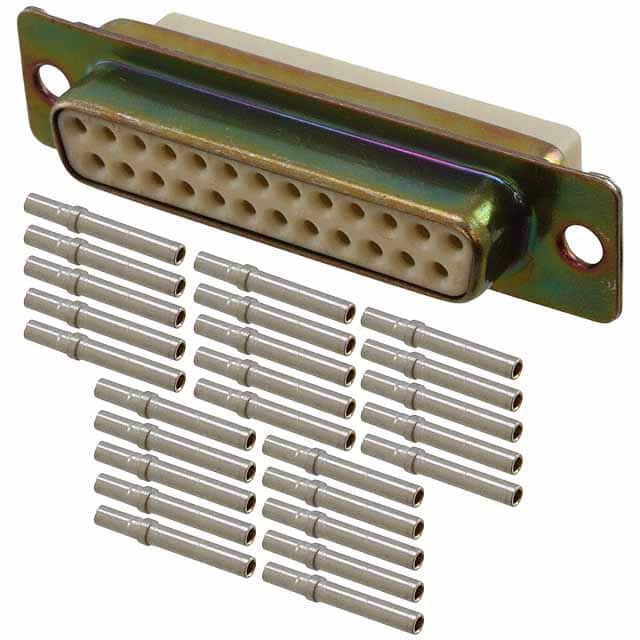

The ITT Cannon DBMA-25S is a D-Sub receptacle with 25 female socket contacts arranged in 2 rows. It features a panel mount design with an unthreaded flange and crimp termination for flexible wiring. The shell size is DB-25 (3, DB, B) with a steel shell finished in tin. Contacts are gold-plated signal type rated for 7.5A continuous current. The insulator material has a UL94 V-0 flammability rating. Designed per MIL-DTL-24308, this connector supports wire gauges AWG 20-28 and is rated for 500 mating cycles. Environmental compliance includes RoHS3, REACH unaffected, and MSL 1 unlimited. Suitable for industrial, telecom, and aerospace applications requiring high reliability.
25 positions.
7.5A per contact.
Panel mount.
Crimp termination.
Gold.
AWG 20-28.
500 mating cycles.
