| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination |

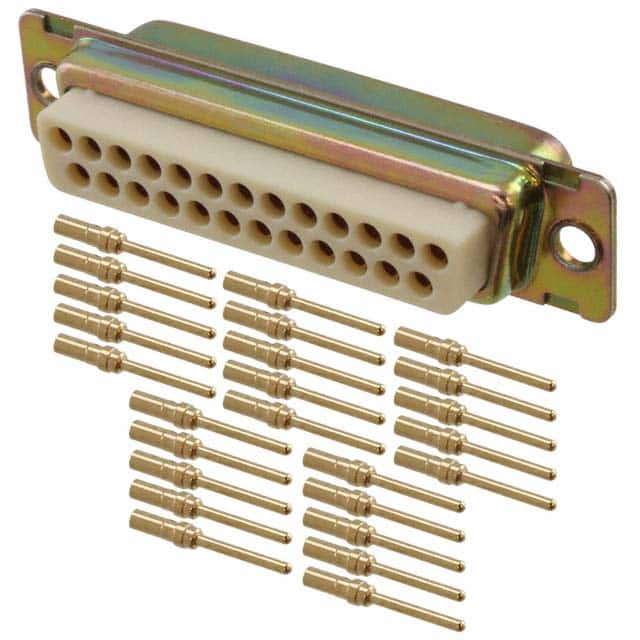

The ITT Cannon DBMA-25P is a D-Sub connector assembly designed for reliable signal interconnections. This plug connector features 25 male pin contacts arranged in 2 rows, housed in a steel shell with a tin-plated finish. The contacts are gold-plated for corrosion resistance and reliable electrical performance.
The connector is designed for panel mounting and uses crimp termination, allowing for flexible wire attachment. It is rated for a nominal current of 7.5 A per contact. The shell size is 3 (DB, B) and includes an unthreaded housing/shell flange feature. The insulator material meets UL94 V-0 flammability rating.
This connector is part of the D*MA series, designed according to MIL-DTL-24308 standards, making it suitable for applications requiring high reliability. Typical uses include industrial, telecommunications, and aerospace equipment where a robust, field-serviceable D-Sub connection is needed.
The DBMA-25P has 25 positions.
The nominal current rating is 7.5 A per contact.
The connector is designed for panel mounting.
It uses crimp termination.
The shell is steel with a tin-plated finish.
The material flammability rating is UL94 V-0.
