| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

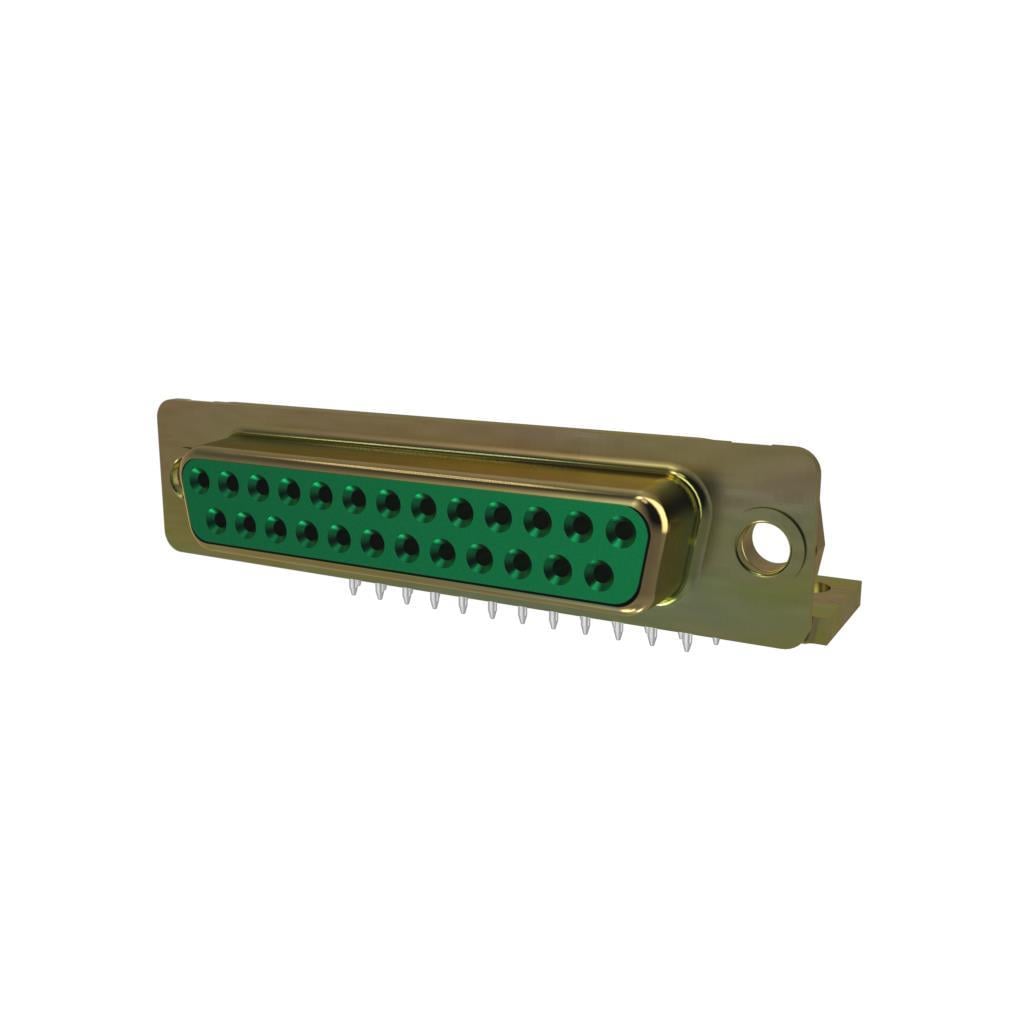

The DBM25SN is a D-Sub connector assembly manufactured by Amphenol ICC. It is a receptacle with 25 female socket contacts arranged in 2 rows, designed for signal applications.
The connector features a solder cup termination style, allowing for easy wire attachment. The contacts are gold-plated for reliable conductivity. The shell is made of steel with yellow cadmium plating, and the insulator material has a UL94 V-0 flammability rating. The connector is rated for 7.5 A per contact.
It is designed for free hanging (in-line) mounting and has a shell size of 3 (DB, B). The flange feature is housing/shell unthreaded. The part is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
25 positions.
7.5 A per contact.
Free hanging (in-line).
Gold.
Steel, yellow cadmium plated.
Solder cup.
UL94 V-0.
