| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flammability Rating | |
| Flange Feature | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Salt Spray Duration | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Wire Gauge |

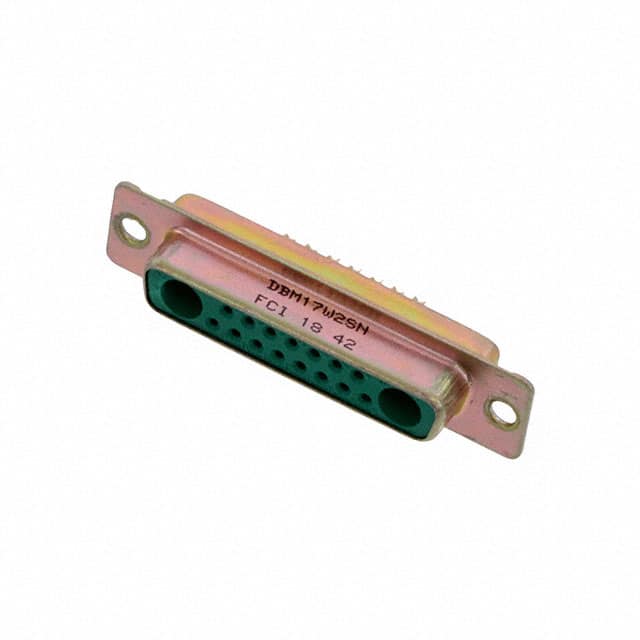

The Amphenol ICC DBM17W2SN is a D-Sub Combo receptacle with a 17W2 contact arrangement, providing 15 signal contacts and 2 power cavities (contacts not included). It features a steel shell with yellow cadmium plating (yellow chromate over zinc as per datasheet) and gold plated copper alloy contacts for reliable electrical performance. The connector uses solder cup termination, allowing easy wire attachment for free hanging inline applications. Signal contacts are rated for 7.5A maximum, with a contact resistance of 10 milliohms max. Dielectric withstanding voltage is 500 VAC at sea level. The insulator is black thermoplastic PCT with UL94 V-0 flammability rating. Operating temperature range is -55°C to +125°C. This connector is suitable for cable-to-cable or cable-to-panel connections in industrial, data communication, and instrumentation systems requiring mixed signal and power distribution. It accommodates wire gauges from 8 to 26 AWG and is rated for 50 mating cycles with 20-hour salt spray resistance.
17W2 layout: 15 signal contacts (size 20) and 2 power cavities (size 8, contacts not included).
Signal contacts are rated for 7.5 A maximum per contact.
Free hanging (in-line) mounting with solder cup termination.
-55°C to +125°C.
8 to 26 AWG.
500 VAC at sea level.
Yes, RoHS3 compliant (verified from existing data).
