| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
52 pcs
|
52 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

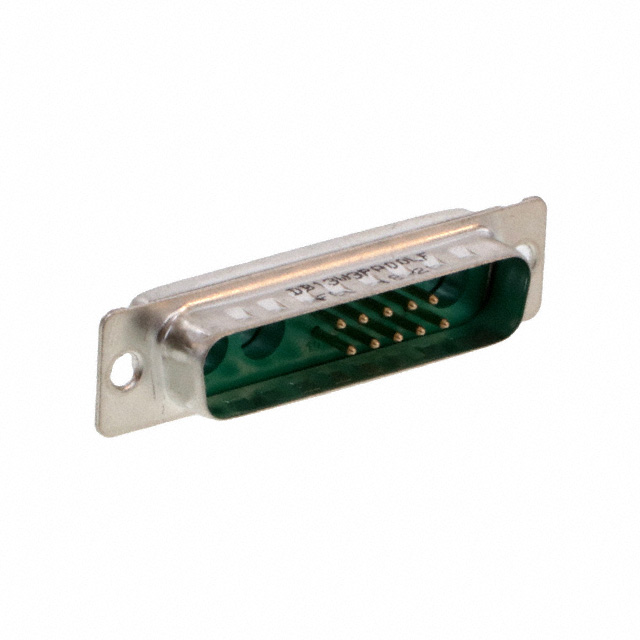

The DBM13W3PN is a D-Sub combo connector plug from Amphenol ICC. It features 13 positions (10 signal contacts and 3 power contacts) in a male pin configuration. The connector uses a solder cup termination style and is designed for free hanging (in-line) mounting. The shell is made of steel with a yellow cadmium plated finish, and the contacts are gold plated for reliable conductivity.
The connector has a current rating of 7.5A per contact and is rated UL94 V-0 for flammability. It has a shell size of 3 (DB, B) corresponding to the 13C3/13W3 layout. The flange feature is a housing/shell (unthreaded) type. Contacts are not included and must be ordered separately.
This connector is suitable for applications requiring a combination of signal and power connections in a compact D-sub form factor. Its free hanging design allows for easy installation in cable assemblies. The product is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
The connector has 13 positions, consisting of 10 signal contacts and 3 power contacts.
The current rating is 7.5A per contact.
Free hanging (in-line) mounting.
Solder cup termination.
Steel with yellow cadmium plated finish.
UL94 V-0.
Yes, it is RoHS3 compliant.
