| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
399 pcs
|
399 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware Mounting Hole | |
| Insulator Color | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Salt Spray Test Duration | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

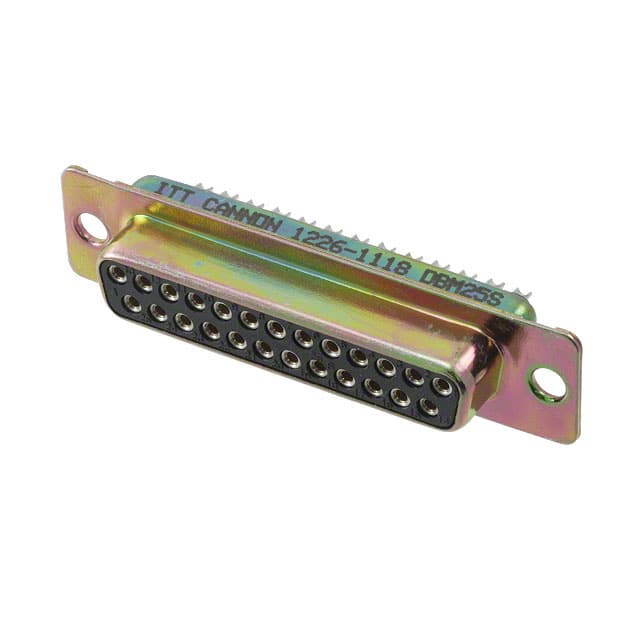

The ITT Cannon DBM-25S is a 25-position D-sub receptacle connector with female sockets, part of the D*M series. It is designed for panel mount applications with an unthreaded housing/shell flange and solder cup termination, accommodating wire gauges from 20 AWG to 28 AWG. The connector features gold over nickel plated copper alloy contacts, rated for 7.5 A maximum current with a contact resistance of 7.5 mOhm maximum. Dielectric withstanding voltage is 1000 VAC at sea level. The insulator is made of black thermoplastic PCT, rated UL94 V-0, and the steel shell has a yellow chromate over zinc finish. Operating temperature range is -55°C to +125°C, with a minimum of 200 mating cycles. This connector is suitable for signal-level interconnections in industrial, telecommunications, instrumentation, and aerospace systems where reliable performance is required.
25 positions.
7.5 A maximum.
1000 VAC at sea level.
Panel Mount.
-55°C to +125°C.
Gold over Nickel.
20 AWG to 28 AWG.
