| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware Mounting Hole | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Salt Spray Test Duration | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

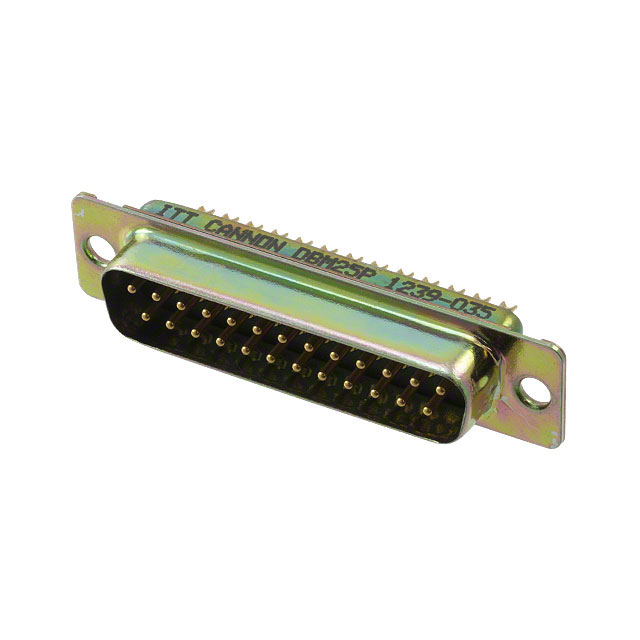

The DBM-25P-F179A from ITT Cannon is a high-reliability D-Sub connector designed for signal applications. This male plug features 25 contacts arranged in a DB-25 shell size, with a 2-row configuration. The connector is terminated via wire wrap, making it suitable for permanent connections in backplane or panel wiring systems.
The connector is rated for a maximum current of 7.5A per contact and can withstand 1000VAC dielectric strength at sea level. Contact resistance is a maximum of 7.5 milliohms, ensuring efficient signal transmission. The contacts are made of copper alloy with a gold finish over nickel, providing excellent corrosion resistance and reliable mating over 200 cycles.
For mechanical mounting, the connector features a panel mount with through-hole hardware (3.05mm mounting holes). The shell is made of steel with a tin finish, and the insulator is thermoplastic PCT rated UL 94V-0. The operating temperature range is -55°C to +125°C, and it has passed a 20-hour salt spray test, indicating suitability for harsh environments.
This connector is commonly used in data communication, industrial control, and military/aerospace applications where reliable connections are critical.
25 positions.
7.5A maximum.
1000 VAC at sea level.
Panel mount with through hole.
Wire wrap.
-55°C to +125°C.
Gold over nickel.
