Mfr Part #:

DBLS107G

Mfr Name: TSC

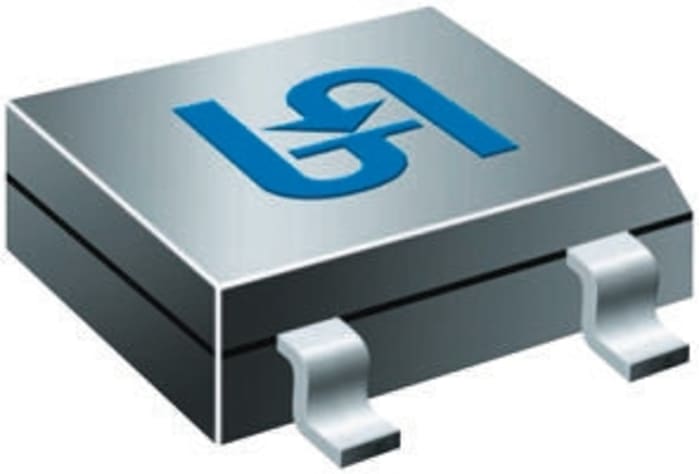

The Taiwan Semiconductor DBLS107G is a single-phase bridge rectifier designed for AC to DC conversion. It features a 1000V repetitive peak reverse voltage and a 30A peak non-repetitive forward surge current.

✓ Total Stock: 7,500 pcs

$ Price Range: $0.52

DBLS107G Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	7,500 pcs On Request	7500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

DBLS107G Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	TSC
Configuration	Single
Forward Current	1A

View Similar Products (0)

DBLS107G Description

Short technical summary and product information.

The Taiwan Semiconductor DBLS107G is a bridge rectifier component designed for efficient AC to DC conversion. This single-phase rectifier offers a high peak reverse repetitive voltage (Vrrm) of 1000V and a significant peak non-repetitive forward surge current (Ifsm) of 30A, making it suitable for various power applications.

With a typical forward voltage (Vf) of 1.1V and a low peak reverse current (Ir) of 10μA, the DBLS107G ensures reliable performance. It operates within a wide temperature range, from -55°C to 150°C.

The component is housed in a surface mount package, identified as DBLS, with 4 pins. It is also compliant with the AEC-Q101 automotive standard, indicating its suitability for demanding automotive environments. The bridge rectifier is manufactured in China.

This bridge rectifier is an essential component for applications requiring the conversion of alternating current (AC) to direct current (DC). Its robust specifications and automotive qualification make it a versatile choice for designers.

DBLS107G Quick Information

Product Type: Bridge Rectifier

Series: DBLS107G

Canonical Name: Taiwan Semiconductor DBLS107G Bridge Rectifier

Subcategory: Discrete Semiconductor

DBLS107G Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

DBLS107G Estimated Pricing

Qty	Low	High
1+	$0.52	$0.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

DBLS107G Features

1000V repetitive peak reverse voltage.
30A peak non-repetitive forward surge current.
Surface mount DBLS package.
AEC-Q101 automotive standard compliant.
Wide operating temperature range.

DBLS107G Applications

Converts AC input to DC output.
Suitable for power supply circuits.
Used in automotive applications.
Reliable for demanding environments.

DBLS107G FAQs

7 frequently asked questions generated from this part’s specifications.

What is the peak reverse repetitive voltage (Vrrm) for the DBLS107G?

The DBLS107G has a peak reverse repetitive voltage of 1000V.

What is the maximum forward current (If) for this bridge rectifier?

The forward current (If) is 1A.

What is the peak non-repetitive forward surge current (Ifsm)?

The peak non-repetitive forward surge current is 30A.

What is the peak forward voltage (Vf) of the DBLS107G?

The peak forward voltage is 1.1V.

What is the operating temperature range for this component?

The operating temperature range is from -55°C to 150°C.

What type of package is the DBLS107G in?

The DBLS107G is in a surface mount DBLS package.

Does the DBLS107G meet automotive standards?

Yes, it is compliant with the AEC-Q101 automotive standard.
