| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Filter Type | |
| Gender | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Shell Material | |
| Shell Plating | |
| Shell Size | |
| Standard Package Quantity | |
| Termination |

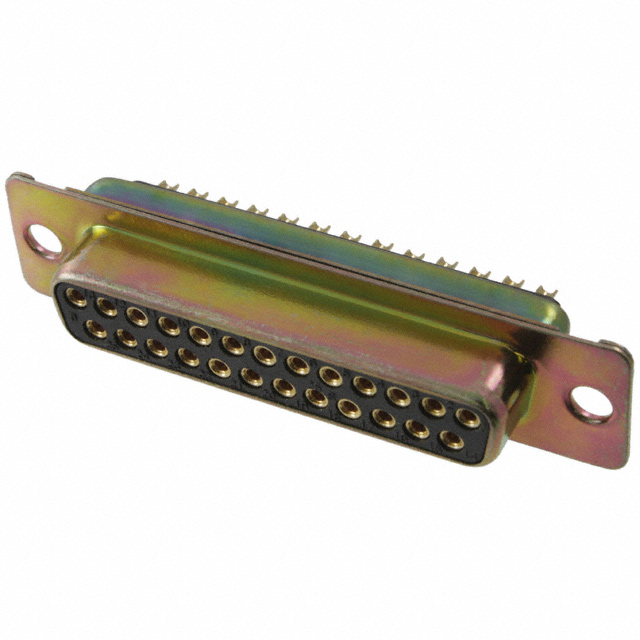

The ITT Cannon DBJK25S4-1A2N is a 25-position female D-Sub connector assembly designed for filtered signal applications. It features a DB shell size with steel shell and tin plating, and copper alloy contacts with gold plating for reliable electrical performance. The connector is rated for 5 A current and operates over a temperature range of -55°C to +125°C.
This connector uses through hole right angle mounting and solder termination, making it suitable for PCB applications where space is constrained. The filtered design helps reduce electromagnetic interference (EMI) in sensitive circuits.
The DBJK25S4-1A2N is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in industrial, telecommunications, and data processing equipment requiring reliable filtered connections.
25 positions.
Female (socket).
Through hole, right angle.
Yes, it is a filtered D-Sub connector.
5 A.
-55°C to +125°C.
RoHS3 compliant, REACH unaffected, MSL 1 (unlimited).
