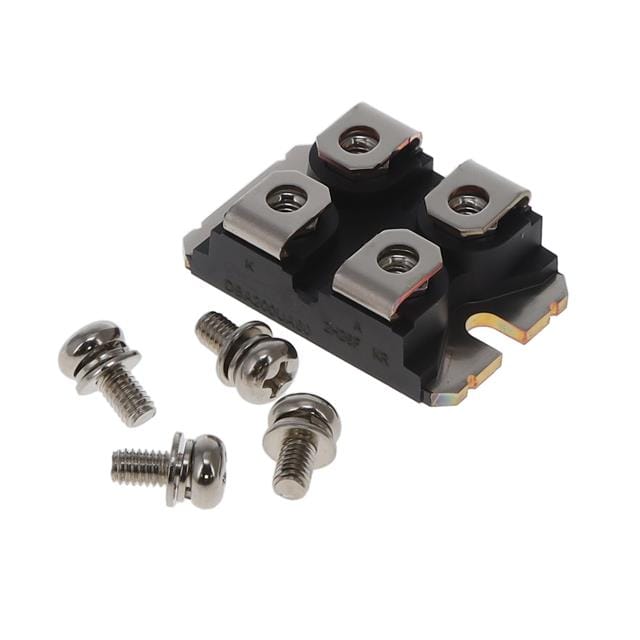

The SanRex DBA200UA60 is a dual fast recovery diode module designed for high power switching applications. It contains two independent diode chips in a single isolated SOT-227 package, allowing for easy installation on a heatsink.
Key electrical ratings include a repetitive peak reverse voltage of 600V, average forward current of 100A per diode (total 200A module), and a low forward voltage drop of 1.35V maximum at 100A. The diode offers fast recovery with a typical reverse recovery time of 150ns under specified conditions, ensuring low switching losses.
This module is suitable for applications such as switching power supplies, inverter welding power supplies, and power sources for communications equipment. The chassis mount SOT-227 package provides excellent thermal performance with a junction-to-case thermal resistance of 0.45°C/W and 2500V isolation voltage.
The operating junction temperature range is -40°C to 150°C, and the device is RoHS and REACH compliant. The module weighs 30 grams and requires mounting torque of 1.5 N·m for M4 screws.
The DBA200UA60 has a repetitive peak reverse voltage (VRRM) of 600V and a DC reverse voltage of 480V.
The average forward current per diode is 100A at TC=89°C, with a total module rating of 200A for two diodes. Surge forward current is 700A non-repetitive.
The maximum forward voltage drop is 1.35V at 100A, with a typical value of 1.20V.
The typical reverse recovery time is 150ns, with a maximum of 250ns under test conditions IF=100A, VR=300V, di/dt=200A/μs.
The DBA200UA60 is housed in a SOT-227-4 miniBLOC package and is chassis mount compatible.
