| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6,133 pcs
$0.10
|
6133 pcs |
$0.10
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Current | |
| Current - Average Rectified (Io) | |
| Diode Type | |
| Junction Capacitance (Cj) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature - Junction (TJ) | |
| Package / Case | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Supplier Device Package | |
| Technology | |
| Voltage | |
| Voltage - Forward (Vf) (Max) @ If |

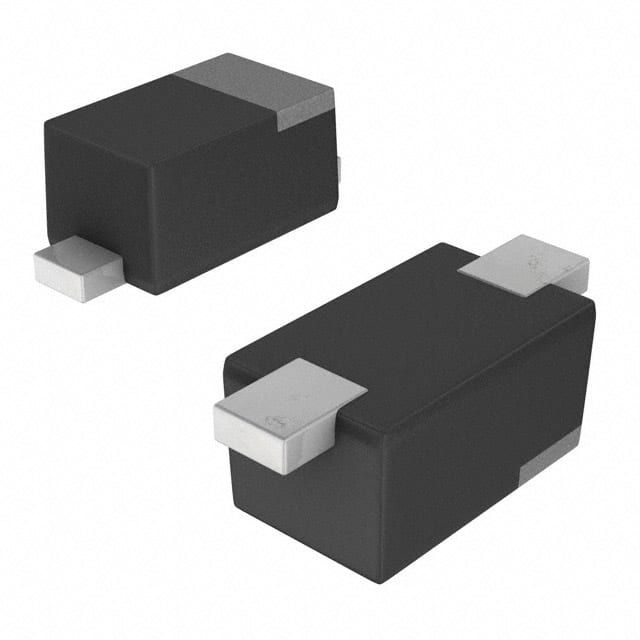

The DB2731600L is a Schottky barrier rectifier diode from Panasonic Electronic Components. It is designed for high-speed switching applications requiring low forward voltage and fast recovery. The diode has a maximum average rectified current of 100 mA and a forward voltage drop of 550 mV at 100 mA. Its reverse recovery time is 800 ps, making it suitable for high-frequency circuits. Junction capacitance is 2 pF at 10 V reverse bias and 1 MHz, minimizing switching losses. The device operates with a maximum junction temperature of 125°C.
The diode is housed in a compact 2-SMD, Flat Lead surface mount package with supplier device package SSSMini2-F4-B. This package enables efficient heat dissipation and space savings in high-density PCB designs. The mounting type is surface mount, simplifying automated assembly processes. Common applications include clamping, flyback, and reverse polarity protection in portable and low-power electronics.
Maximum 550 mV at 100 mA forward current.
100 mA.
800 ps.
2 pF at 10V reverse bias and 1 MHz.
Maximum 125°C.
2-SMD, Flat Lead surface mount package, supplier device package SSSMini2-F4-B.
30V (based on product description).
