| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Cable Exit | |
| Cable Type | |
| Hardware | |
| Material | |
| Number of Positions | |
| Plating | |
| Shielding |

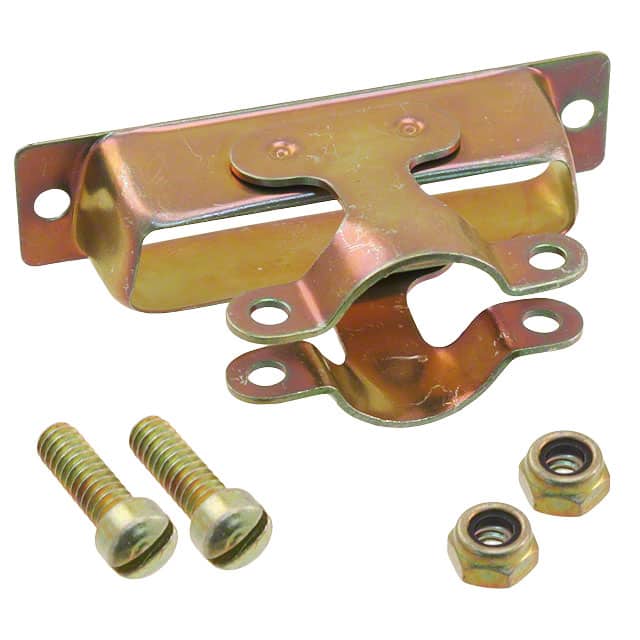

The DB20962 is a one-piece D-Sub backshell from ITT Cannon, designed for connectors with 25 positions. It provides a 180° straight cable exit, making it suitable for applications where cables route directly away from the connector.
This backshell is constructed from metal carbon steel with a yellow chromate over cadmium plating, offering corrosion resistance and durability. It is unshielded, intended for environments where electromagnetic interference (EMI) protection is not required. The hardware includes a cable clamp and assembly hardware for secure cable attachment.
Commonly used in conjunction with standard D-Sub connectors, the DB20962 provides strain relief and mechanical protection for the cable-to-connector interface. Its one-piece design simplifies installation.
For proper fit, ensure cable diameter and connector shell size compatibility. This part is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity.
25 positions.
180°.
Metal, Carbon Steel.
Yellow Chromate over Cadmium.
No, it is unshielded.
Assembly hardware and cable clamp.
Yes, RoHS3 Compliant.
