| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Weight |

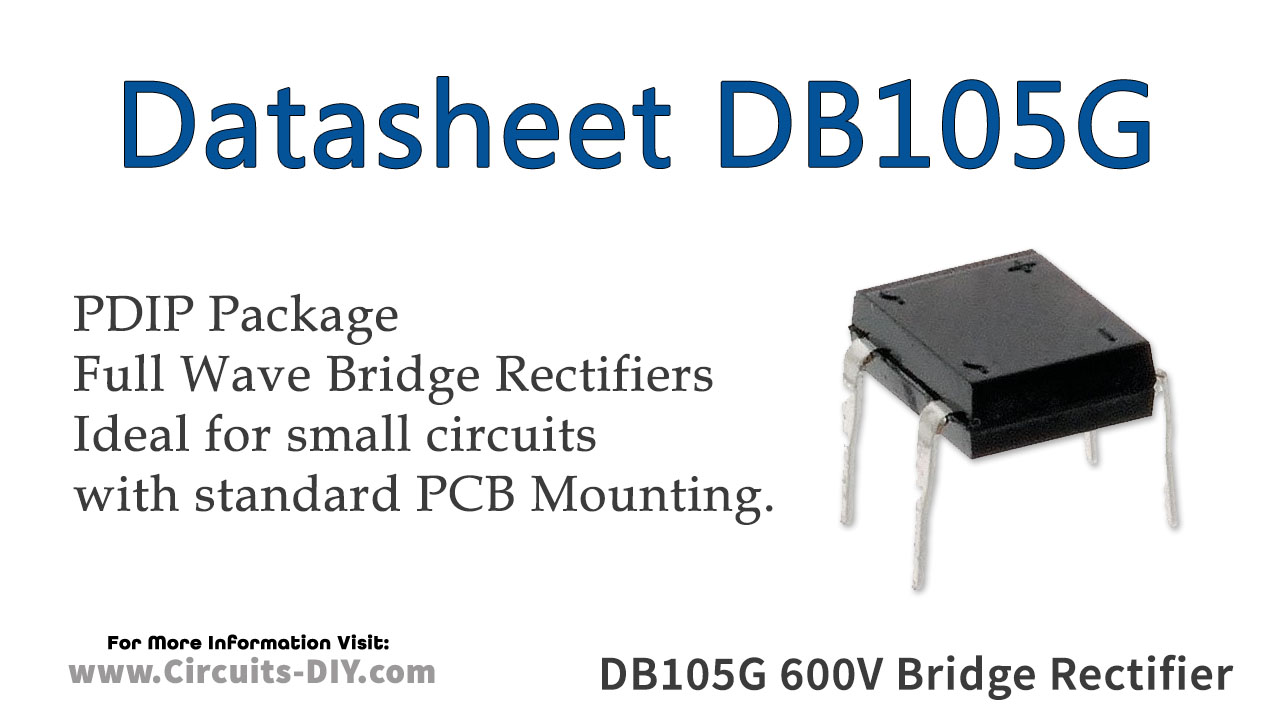

The DB105G is a full-wave bridge rectifier manufactured by TSC, designed for efficient power rectification in electronic circuits. It features a maximum repetitive reverse voltage (Vrrm) of 600V and an average forward current (Io) of 1A.
This component is suitable for printed circuit board assembly, with a typical forward voltage (Vf) of 1.1V at 1A. It also has a peak surge current rating of 50A, indicating its robustness under transient conditions. The rectifier has a weight of 1.0 grams and is designed for through-hole mounting.
Key electrical specifications include a reverse leakage current (Ir) of 0.01mA and a DC blocking voltage of 600V. The DB105G is a reliable choice for power supply circuits and other applications requiring rectification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DB105G has a maximum repetitive reverse voltage of 600V.
The DB105G is rated for an average forward current of 1A.
The typical forward voltage for the DB105G is 1.1V at 1A.
The DB105G has a peak surge current rating of 50A.
The DB105G is designed for through-hole mounting.
