DB101S Single-phase glass passivated silicon bridge rectifier rated for 50V peak repetitive reverse voltage and 1A average forward output current. Surface mount package (DB-S).
Mfr Part #:

DB101S

Available from 1 distributors
Mfr Name: SMC Diode Solutions
SMC Diode Solutions
Single-phase glass passivated silicon bridge rectifier rated for 50V peak repetitive reverse voltage and 1A average forward output current. Surface mount package (DB-S).
✓ Total Stock: 12 pcs

DB101S Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DB101S Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Configuration
Diode Type
Junction Capacitance
Mounting Type
Operating Temperature
Package / Case
Supplier Device Package
Technology
Termination Style
Voltage
View Similar Products (0)

DB101S Description

Short technical summary and product information.

The DB101S is a single-phase glass passivated silicon bridge rectifier designed for surface mount applications. It features a peak repetitive reverse voltage (VRRM) of 50V and an average forward output current (IF(AV)) of 1.0A at a case temperature of 100°C. The device can handle non-repetitive peak forward surge currents up to 45A (8.3ms single half sine-wave).



Electrical characteristics include a maximum forward voltage drop of 1.0V at 1A and 25°C, and a reverse current of 5µA at 25°C (200µA at 125°C). Typical junction capacitance is 25pF at 1MHz and 4V reverse bias. Thermal resistance from junction to ambient is 40°C/W and junction to lead is 15°C/W. The operating junction temperature range is -55°C to 150°C.

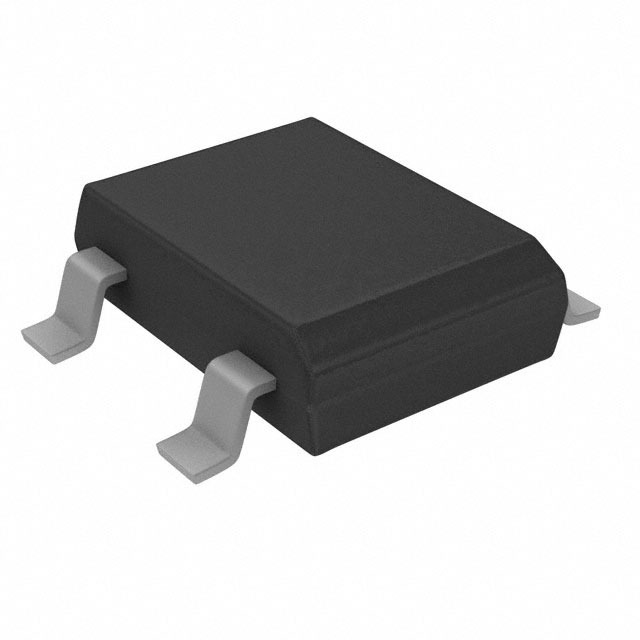

The DB101S is housed in a DB-S molded plastic case with gull wing leads, suitable for surface mount assembly. The package is UL 94V-0 flammability rated and the device is Pb-Free and RoHS3 compliant. Polarity is marked on the case.

DB101S Quick Information

Product Type: Bridge Rectifier
Canonical Name: DB101S Single-Phase Glass Passivated Silicon Bridge Rectifier
Subcategory: Single Phase Bridge Rectifier

DB101S Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

DB101S Features

  • Glass passivated die construction for reliability.
  • Rated for 50V peak repetitive reverse voltage.
  • 1A average forward output current at 100°C.
  • 45A non-repetitive peak surge current capability.
  • Surface mount DB-S package with gull wing leads.

DB101S Applications

  • Used in AC to DC bridge rectification circuits.
  • Suitable for power supply input stages.
  • Ideal for general purpose rectification in low power applications.
  • Can be used in battery chargers and adapters.

DB101S FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage of DB101S?

50V.

What is the average forward output current?

1.0A at TC=100°C.

What is the forward voltage drop?

1.0V maximum at 1A, 25°C.

What is the non-repetitive peak surge current?

45A for 8.3ms single half sine-wave.

What is the operating junction temperature range?

-55°C to 150°C.

What package is DB101S available in?

4-SMD gull wing (DB-S).

Is DB101S RoHS compliant?

Yes, RoHS3 compliant and Pb-Free.
