| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

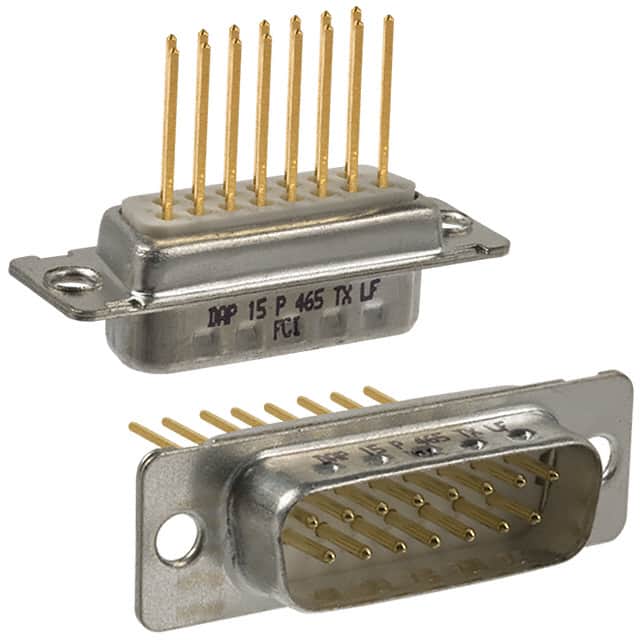

The DAP15P465TXLF is a D-Sub plug connector manufactured by Amphenol ICC. It features 15 positions arranged in 2 rows, with male pin contacts designed for signal applications. The connector uses a panel mount, through hole mounting style and wire wrap termination.
The contacts are finished with Gold, GXT™ plating of 30.0µin (0.76µm) thickness, ensuring reliable conductivity and corrosion resistance. The connector is rated for 7.5A per contact. The shell is made of steel with tin plating, and the housing material has a UL94 V-0 flammability rating. It includes grounding indents for improved EMI performance.
The DAP15P465TXLF is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited). It is suitable for use in various industrial and commercial applications requiring a robust D-Sub connection with wire wrap termination.
15 positions arranged in 2 rows.
7.5A per contact.
Panel mount with through hole mounting.
Wire wrap termination.
Gold, GXT™ with 30.0µin (0.76µm) thickness.
Steel with tin plating.
UL94 V-0.
