| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

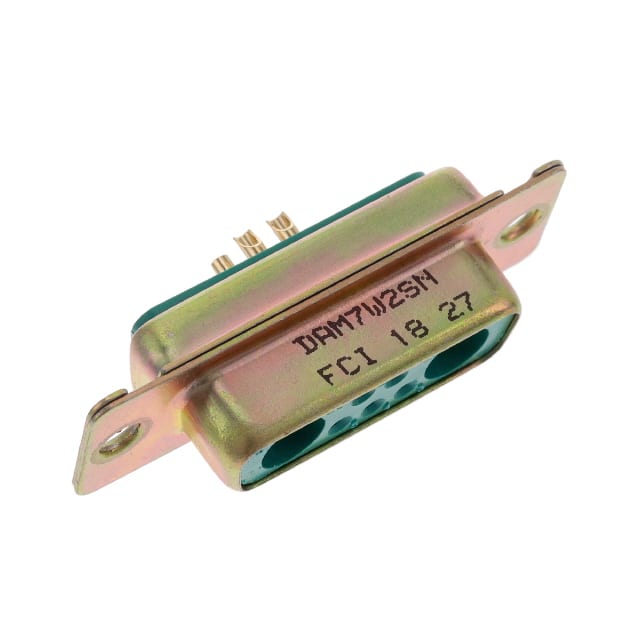

The DAM7W2SN is a D-Sub combo receptacle manufactured by Amphenol ICC. This connector features 7 positions arranged as 5 signal contacts and 2 power contacts, with female sockets on a 2-row layout. The shell size is 2 (DA, A) - 7W2, and the shell is made of steel with a yellow cadmium plating. The flange feature is housing/shell (unthreaded).
Termination is via solder cup, and the mounting type is free hanging (in-line), making it suitable for cable-to-cable or cable-to-panel applications where a reliable in-line connection is required. The contact finish is gold, providing corrosion resistance and reliable electrical performance. Each contact is rated for 7.5 A (signal and power).
The connector body uses a material with a UL94 V-0 flammability rating, indicating good flame retardancy. Contacts are not included with this assembly and must be ordered separately. The product is claimed RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
7 positions total: 5 signal and 2 power.
7.5 A per contact for both signal and power contacts.
Free hanging (in-line) mounting.
Solder cup termination.
Steel with yellow cadmium plating.
Yes, claimed RoHS3 compliant.
UL94 V-0.
