| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Finish | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

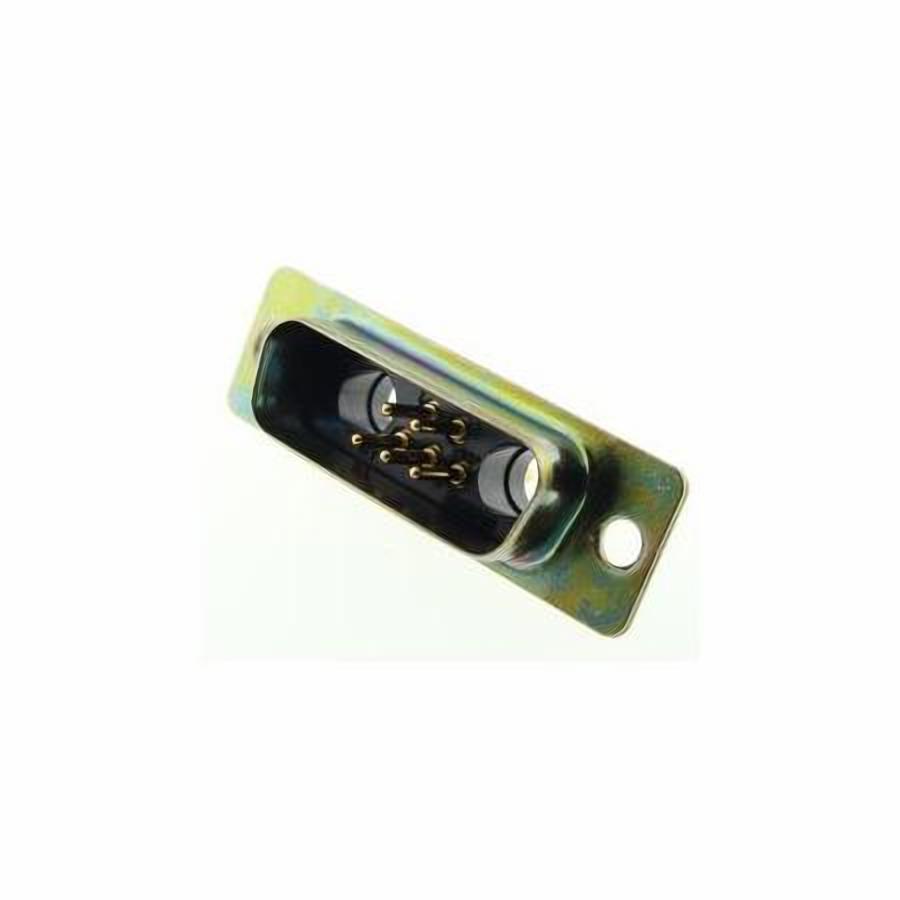

The DAM7W2P is a D-Subminiature combo connector from ITT Cannon's COMBO D series. It is a plug (male pin) connector with a 7W2 contact arrangement, offering 5 signal contacts (size 20) and 2 empty cavities for coax or power contacts (size 8). This mixed-layout design allows for signal and power or coaxial connections in a single connector shell.
Key electrical specifications include a maximum current rating of 7.5A per signal contact, a dielectric withstanding voltage of 500 VAC at sea level, and a maximum contact resistance of 10 mOhm. The operating temperature range is -55°C to +125°C. The connector is shielded and features a steel shell with yellow chromate plated zinc finish.
The insulator is made of thermoplastic PCT with UL94 V-0 flammability rating. Contacts are copper alloy with gold flash finish. Termination is via solder cups, and the connector is designed for panel mounting with an unthreaded housing/shell flange. The wire gauge range is AWG 8-26. The connector is rated for 50 mating cycles and passes a 20-hour salt spray test.
This connector is suitable for applications requiring mixed signal and power in a compact D-Sub form factor, such as industrial control, data communications, and test equipment.
7 positions in a 7W2 layout: 5 signal contacts (size 20) and 2 empty cavities for coax or power contacts (size 8).
7.5 A maximum per signal contact.
Panel mount with an unthreaded housing/shell flange. Note: the datasheet also mentions a through hole mounting method; verify with manufacturer.
-55°C to +125°C.
Steel with yellow chromate plated zinc finish.
Yes, it is shielded.
UL94 V-0.
