| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

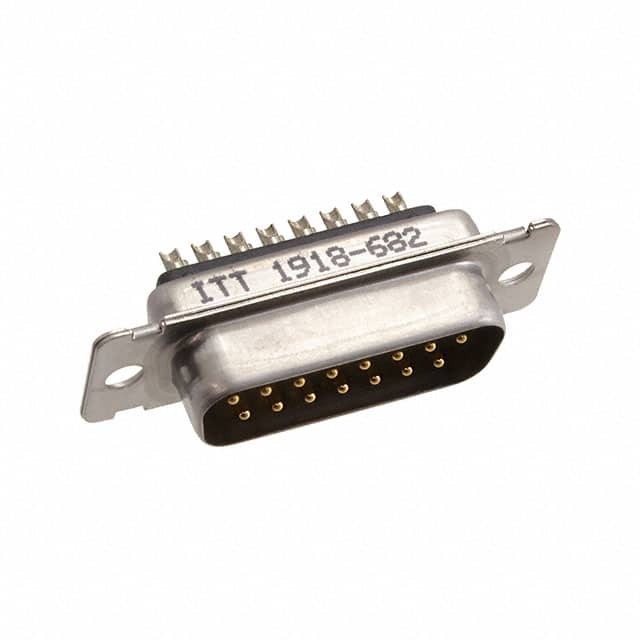

The DAM15PF225 is a D-Sub plug connector manufactured by ITT Cannon. It features 15 male pin positions arranged in 2 rows, making it suitable for standard interface applications. The connector uses a panel mount configuration with a solder cup termination, ideal for secure cable connections.
Electrical specifications include a current rating of 7.5 A per contact. The contacts are finished with gold for reliable conductivity and corrosion resistance. The shell is made of stainless steel, providing durability in industrial and harsh environments.
The connector housing meets UL94 V-0 flammability requirements, indicating a high level of fire resistance. The shell size is 2 (DA, A) and includes an unthreaded housing/flange feature for panel mounting. This product is RoHS3 compliant and REACH unaffected, though these compliance statements are not verified with supporting documents.
15 positions arranged in 2 rows.
Panel mount with an unthreaded housing/shell flange feature.
Solder cup termination.
7.5 A per contact.
Stainless steel.
