| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
202 pcs
|
202 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Arrangement | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Flange Feature | |
| Hardware | |
| Insulator Material | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Salt Spray Test Duration | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Wire Gauge Range |

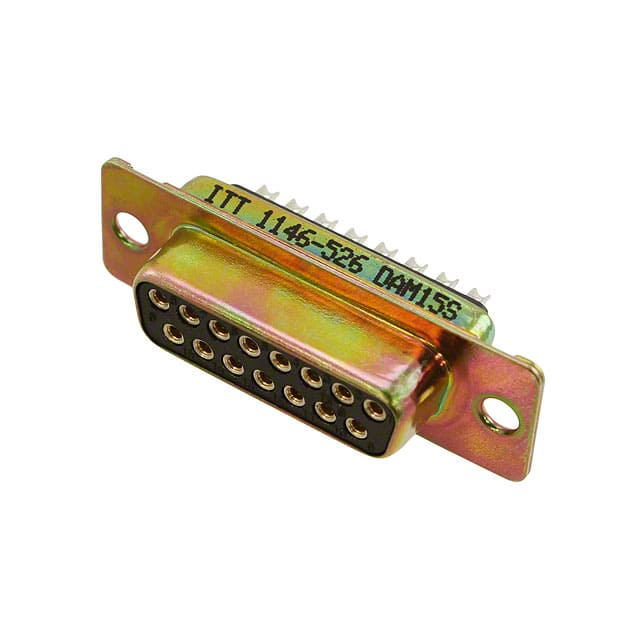

The DAM-15S from ITT Cannon is a D-Sub receptacle with 15 female socket contacts arranged in 2 rows (shell size 2, DA, A). It is designed for panel mount applications and features solder cup termination for wire attachment. The connector accepts wire gauges 20-28 AWG and is rated for 7.5A continuous current.
The contacts are made of copper alloy with gold over nickel finish, ensuring low contact resistance (7.5 mOhm max) and reliable signal transmission. The steel shell is finished with yellow chromate plated zinc, providing corrosion resistance. The insulator is made of thermoplastic PCT with a UL94 V-0 flammability rating.
Electrically, the connector can withstand 1000 VAC dielectric at sea level. It operates over a temperature range of -55°C to +125°C and is tested for 20 hours of salt spray. The mating cycles are rated at 200, making it suitable for repeated use in various interconnect systems.
The DAM-15S is a 15-position D-Sub receptacle with 2 rows.
The current rating is 7.5 A.
The mounting type is panel mount.
The dielectric withstanding voltage is 1000 VAC at sea level.
The contact resistance is 7.5 mOhm max.
The operating temperature range is -55°C to +125°C.
The shell is steel with yellow chromate plated zinc finish.
