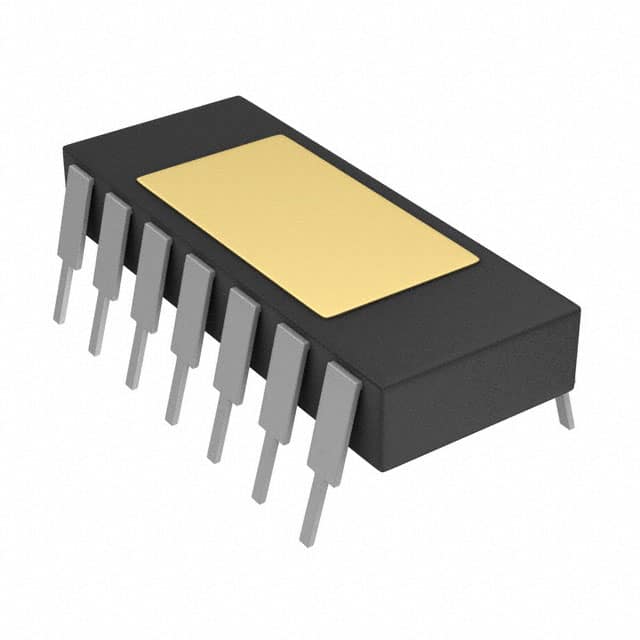

The DAC811AH from Texas Instruments is a complete, single-chip, microprocessor-compatible, 12-bit digital-to-analog converter. It integrates a precision voltage reference, microcomputer interface logic, and a double-buffered latch, along with a voltage output amplifier. This design ensures highly accurate and fast D/A conversion.
Key electrical specifications include a 12-bit resolution, R-2R architecture, and a settling time of 4µs. The device supports a parallel data interface and an internal voltage reference. It operates with analog supply voltages between ±11.4V and ±16.5V, and a digital supply voltage of 5V. The output type is voltage-buffered, and it does not feature differential output.
Designed for through-hole mounting, the DAC811AH comes in a 28-CDIP package. It operates reliably within a temperature range of -25°C to 85°C. The converter offers integral non-linearity (INL) of ±0.25 LSB and differential non-linearity (DNL) of ±0.5 LSB.
The DAC811AH has a resolution of 12 bits.
The settling time for the DAC811AH is 4µs.
The DAC811AH provides a voltage-buffered output.
The DAC811AH operates between -25°C and 85°C.
The DAC811AH is designed for through-hole mounting.
The DAC811AH is supplied in a 28-CDIP (0.600", 15.24mm) Window package.
