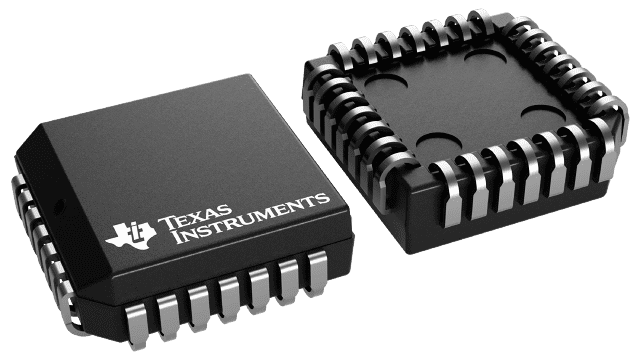

DAC7725NB The B&B Smartworx DAC7725NB is a 12-bit quad voltage output digital-to-analog converter. It offers a parallel interface and buffered voltage output.
Mfr Part #:

DAC7725NB

Available from 1 distributors
Mfr Name: B&B Smartworx
B&B Smartworx
The B&B Smartworx DAC7725NB is a 12-bit quad voltage output digital-to-analog converter. It offers a parallel interface and buffered voltage output.
✓ Total Stock: 7,694 pcs
$ Price Range: $32.48

DAC7725NB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,694 pcs
On Request
7694 pcs On Request 1 On Request On Request 00+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAC7725NB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Mounting Type
Operating Temperature Range
Output Type
Power Consumption
Reference Type
Resolution
Settling Time
View Similar Products (0)

DAC7725NB Description

Short technical summary and product information.

The DAC7725NB from B&B Smartworx is a 12-bit, quad-channel, voltage output digital-to-analog converter. It guarantees 12-bit monotonic performance over its operating temperature range of -40°C to 85°C.



Key electrical specifications include a parallel interface, buffered voltage output, and an integral non-linearity of ±1 LSB. The settling time is 10 µs, and it operates with an external reference. The typical power consumption is 45 mW.



This DAC is available in SOIC (DW) and PLCC (FN) surface-mount packages. Applications include process control, closed-loop servo control, motor control, and data acquisition systems.

DAC7725NB Quick Information

Product Type: Digital-to-Analog Converter (DAC)
Canonical Name: 12-Bit Quad Voltage Output Digital-to-Analog Converter
Subcategory: Voltage Regulator Controller

DAC7725NB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAC7725NB Estimated Pricing

Qty Low High
1+ $32.48 $32.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

DAC7725NB Features

  • 12-bit resolution, 4 DAC channels.
  • Parallel interface, buffered voltage output.
  • Settling time of 10 µs.
  • Wide operating temperature range.
  • Available in SOIC and PLCC packages.

DAC7725NB Applications

  • Process control systems.
  • Closed-loop servo control.
  • Motor control applications.
  • Data acquisition systems.

DAC7725NB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the DAC7725NB?

The DAC7725NB has a resolution of 12 bits.

How many channels does the DAC7725NB have?

The DAC7725NB features 4 channels.

What is the interface type of the DAC7725NB?

The DAC7725NB uses a parallel interface.

What is the power consumption of the DAC7725NB?

The device consumes 45 milliwatts.

What is the operating temperature range of the DAC7725NB?

It operates from -40°C to 85°C.

What packages are available for the DAC7725NB?

It is available in SOIC (DW) and PLCC (FN) packages.

Is the DAC7725NB RoHS compliant?

Yes, it is RoHS3 compliant.
