| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,362 pcs
|
3362 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The Texas Instruments DAC7624U is a 12-bit digital-to-analog converter (DAC) designed for data acquisition applications. This device features four voltage output channels and utilizes an R-2R architecture for precise conversion.
Key electrical specifications include a 12-bit resolution, a settling time of 10µs, and buffered voltage outputs. It supports external voltage references and operates with analog supply voltages of ±5V and digital supply voltages of 5V. The integral and differential linearity (INL/DNL) are within ±2 (Max) and ±1 (Max) LSB, respectively.

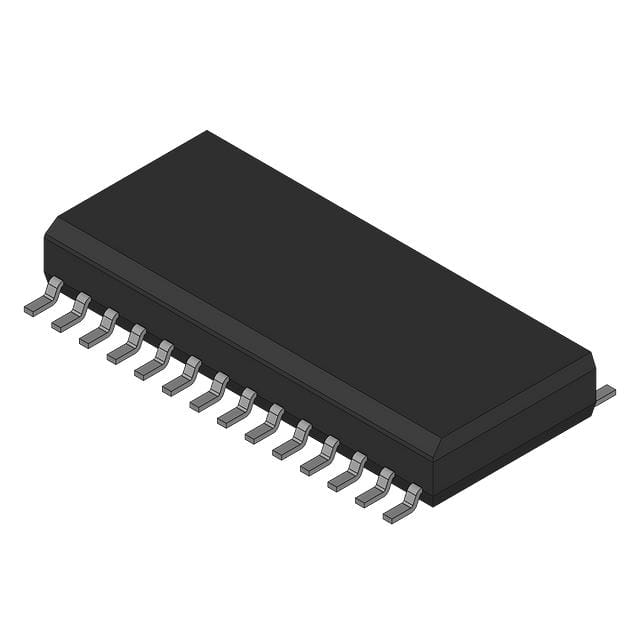

This DAC is housed in a 28-SOIC surface mount package, measuring 0.295 inches (7.50mm) in width. It operates within an industrial temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
The DAC7624U is designed for applications requiring accurate analog signal generation from digital inputs. Its quad-channel output and buffered voltage output simplify system design.
The DAC7624U has a resolution of 12 bits.
There are 4 digital-to-analog converters on the DAC7624U.
The settling time for the DAC7624U is 10µs.
The DAC7624U provides a buffered voltage output.
The DAC7624U requires an analog supply voltage of ±5V.
The DAC7624U operates in a temperature range of -40°C to 85°C.
The DAC7624U is supplied in a 28-SOIC package.
