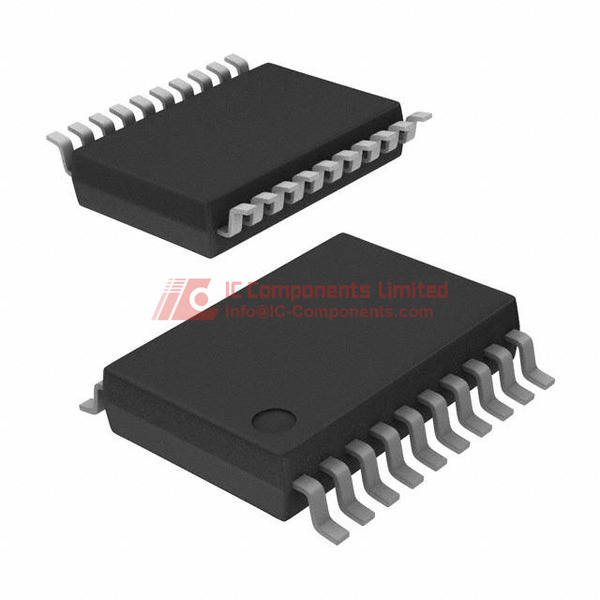

DAC7615EB The DAC7615EB is a 12-bit digital-to-analog converter with four channels, using an R-2R architecture. It features a voltage buffered output and an SPI data interface.
Mfr Part #:

DAC7615EB

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The DAC7615EB is a 12-bit digital-to-analog converter with four channels, using an R-2R architecture. It features a voltage buffered output and an SPI data interface.
✓ Total Stock: 3,600 pcs

DAC7615EB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAC7615EB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Architecture
Automotive Grade
Data Interface
Differential Output
INL
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

DAC7615EB Description

Short technical summary and product information.

The DAC7615EB is a digital-to-analog converter (DAC) manufactured by Texas Instruments. It provides 12-bit resolution across four channels, suitable for precise data conversion tasks. The device employs an R-2R architecture, ensuring accurate and stable output voltages. It features a voltage buffered output type and uses an SPI interface for data communication, making it compatible with various digital systems.



Designed for data acquisition and control applications, the DAC7615EB operates within a temperature range of -40°C to 85°C. It is packaged in a 20-SSOP surface-mount package, which facilitates easy integration into circuit boards. The device requires a 5V digital supply and a ±5V analog supply, supporting external voltage references for flexible operation.



This component is compliant with RoHS standards and is supplied in a tape and reel packaging format, suitable for automated assembly processes.

DAC7615EB Quick Information

Product Type: Digital to Analog Converter
Canonical Name: IC DAC 12BIT V-OUT 20SSOP

DAC7615EB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAC7615EB Features

  • 12-bit resolution with four channels
  • SPI data interface for communication
  • Voltage buffered output type
  • R-2R architecture for accuracy
  • Operates from -40°C to 85°C

DAC7615EB Applications

  • Used in data acquisition systems
  • Suitable for industrial control applications
  • Ideal for precision voltage output
  • Compatible with microcontroller interfaces

DAC7615EB FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the DAC7615EB?

It operates with a 5V digital supply and a ±5V analog supply.

What package does the DAC7615EB come in?

It is packaged in a 20-SSOP surface-mount package.

What is the operating temperature range of the DAC7615EB?

-40°C to 85°C.

Is the DAC7615EB RoHS compliant?

Yes, it is RoHS3 compliant.
