DAC7551IDRNT The Texas Instruments DAC7551IDRNT is a 12-bit digital-to-analog converter with a buffered voltage output. It features an SPI interface and a settling time of 5µs.
Mfr Part #:

DAC7551IDRNT

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DAC7551IDRNT is a 12-bit digital-to-analog converter with a buffered voltage output. It features an SPI interface and a settling time of 5µs.
✓ Total Stock: 97,460 pcs
$ Price Range: $2.38

DAC7551IDRNT Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Unit Electronics Co.,Limited ✓
Non-Authorised Inventory information
73,849 pcs
On Request
73849 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
23,441 pcs
On Request
23441 pcs On Request 1 On Request On Request 12+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
150 pcs
On Request
150 pcs On Request 1 On Request On Request 0614+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAC7551IDRNT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

DAC7551IDRNT Description

Short technical summary and product information.

The Texas Instruments DAC7551IDRNT is a 12-bit, ultralow glitch, voltage output digital-to-analog converter. It offers a resolution of 12 bits and a single DAC channel with a buffered voltage output. The device supports an SPI interface and has a settling time of 5µs.



This DAC operates over a voltage range of 2.7V to 5.5V and an extended temperature range of -40°C to 105°C. It features an external reference type and a string DAC architecture. Key electrical characteristics include an INL of ±0.35 LSB and ultralow glitch energy of 0.1nV-s. It also provides low power operation at 100µA at 2.7V and a power-down mode consuming only 0.05µA at 2.7V.

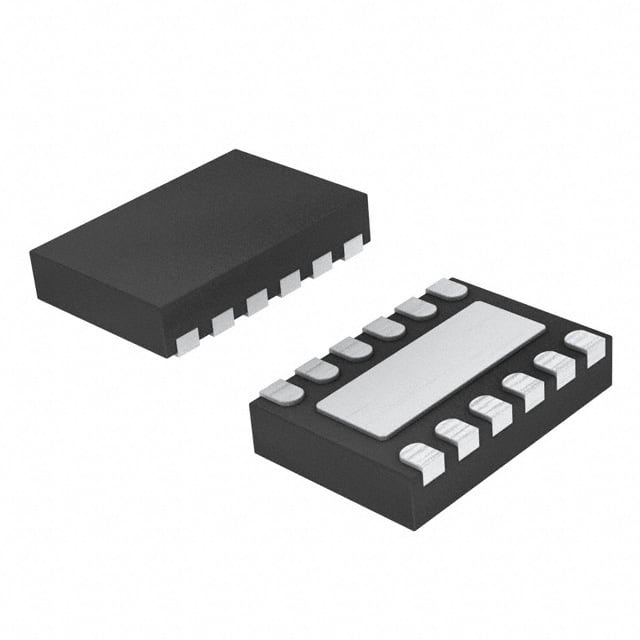

The DAC7551IDRNT is available in a compact 12-USON (3x2) package, suitable for surface mount applications. It includes features like power-on reset to zero scale and asynchronous hardware clear to zero scale, along with daisy-chain capability for the SPI interface.



Applications for this DAC include portable, battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, programmable attenuators, and industrial process control.

DAC7551IDRNT Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: Texas Instruments DAC7551IDRNT 12-Bit Voltage Output Digital to Analog Converter
Subcategory: DAC

DAC7551IDRNT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAC7551IDRNT Estimated Pricing

Qty Low High
1+ $2.38 $2.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

DAC7551IDRNT Features

  • 12-bit resolution and voltage output.
  • SPI compatible serial interface up to 50MHz.
  • 5µs maximum settling time.
  • Wide operating voltage from 2.7V to 5.5V.
  • Compact 12-USON surface mount package.

DAC7551IDRNT Applications

  • Ideal for battery-powered instruments.
  • Used for digital gain adjustment.
  • Suitable for programmable voltage sources.
  • Applicable in industrial process control.

DAC7551IDRNT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the DAC7551IDRNT?

The DAC7551IDRNT has a resolution of 12 bits.

What type of output does the DAC7551IDRNT provide?

The DAC7551IDRNT provides a buffered voltage output.

What is the settling time for the DAC7551IDRNT?

The settling time for the DAC7551IDRNT is 5µs.

What is the operating temperature range of the DAC7551IDRNT?

The DAC7551IDRNT operates in a temperature range of -40°C to 105°C.

What is the package type for the DAC7551IDRNT?

The DAC7551IDRNT is supplied in a 12-USON (3x2) package.
