DAC3484IZAYR The Texas Instruments DAC3484IZAYR is a 4-channel, 16-bit digital-to-analog converter with a sample rate of 1250 MSPS. It features a parallel LVDS data interface and operates over a temperature range of -40°C to 85°C.
Mfr Part #:

DAC3484IZAYR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DAC3484IZAYR is a 4-channel, 16-bit digital-to-analog converter with a sample rate of 1250 MSPS. It features a parallel LVDS data interface and operates over a temperature range of -40°C to 85°C.
✓ Total Stock: 26,826 pcs
$ Price Range: $73.19

DAC3484IZAYR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
22,600 pcs
On Request
22600 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,023 pcs
On Request
4023 pcs On Request 1 On Request On Request 17+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
203 pcs
On Request
203 pcs On Request 1 On Request On Request 1636+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAC3484IZAYR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Architecture
Automotive Grade
Data Interface
Differential Output
INL
Industrial Grade
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Voltage
View Similar Products (0)

DAC3484IZAYR Description

Short technical summary and product information.

The Texas Instruments DAC3484IZAYR is a high-speed, 4-channel, 16-bit digital-to-analog converter (DAC) designed for demanding applications. It boasts a maximum sample rate of 1250 MSPS and supports interpolation factors up to 16x, enabling flexible signal processing.



Key electrical characteristics include a typical power consumption of 1200 mW and an SFDR of 82 dB. The device operates with a voltage range of 1.14V to 1.32V and features an architecture based on a current source. The settling time is typically 10 ns.

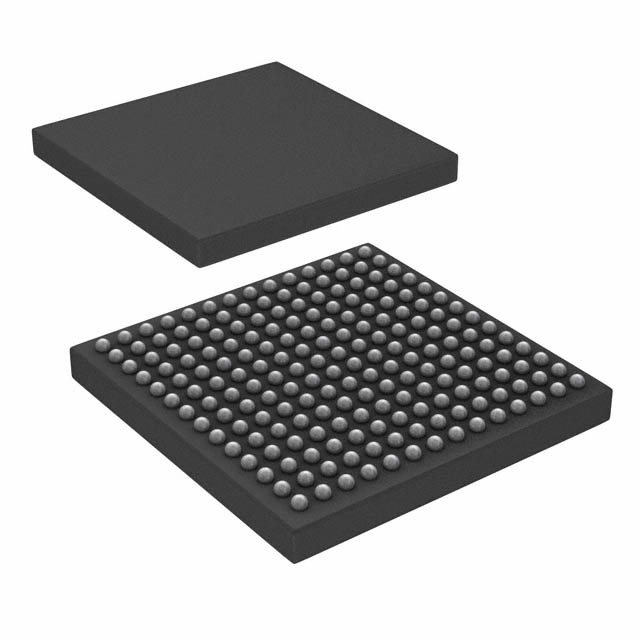

This DAC utilizes a parallel LVDS data interface for high-speed data transfer. It is available in a 196-NFBGA (12x12) package and supports surface mount installation. The operating temperature range is -40°C to 85°C, making it suitable for various environmental conditions.



Additional features include selectable interpolation filters with stop-band attenuation greater than 90 dBc and flexible on-chip complex mixing capabilities. The DAC3484IZAYR also offers digital I and Q correction, gain, phase, offset, and group delay correction.

DAC3484IZAYR Quick Information

Product Type: Digital to Analog Converter (DAC)
Canonical Name: Texas Instruments DAC3484IZAYR 4-Channel, 16-Bit, 1.25 GSPS Digital-to-Analog Converter
Subcategory: DAC

DAC3484IZAYR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAC3484IZAYR Estimated Pricing

Qty Low High
1+ $73.19 $73.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

DAC3484IZAYR Features

  • Four channel, 16-bit resolution DAC.
  • 1250 MSPS maximum sample rate.
  • Parallel LVDS data interface.
  • Operates from -40°C to 85°C.
  • 196-NFBGA surface mount package.

DAC3484IZAYR Applications

  • High-speed signal generation.
  • Digital signal processing.
  • Communications infrastructure.
  • Test and measurement equipment.

DAC3484IZAYR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the DAC3484IZAYR?

The DAC3484IZAYR has a resolution of 16 bits.

How many DAC channels does the DAC3484IZAYR have?

The DAC3484IZAYR features 4 DAC channels.

What is the maximum sample rate of the DAC3484IZAYR?

The DAC3484IZAYR has a maximum sample rate of 1250 MSPS.

What type of interface does the DAC3484IZAYR use?

The DAC3484IZAYR uses a parallel LVDS data interface.

What is the operating temperature range for the DAC3484IZAYR?

The DAC3484IZAYR operates in a temperature range of -40°C to 85°C.

What package is the DAC3484IZAYR supplied in?

The DAC3484IZAYR is supplied in a 196-NFBGA (12x12) package.

What is the typical power consumption of the DAC3484IZAYR?

The typical power consumption of the DAC3484IZAYR is 1200 mW.
