| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,030 pcs
|
2030 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Lead Spacing | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Power Consumption | |
| Settling Time | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

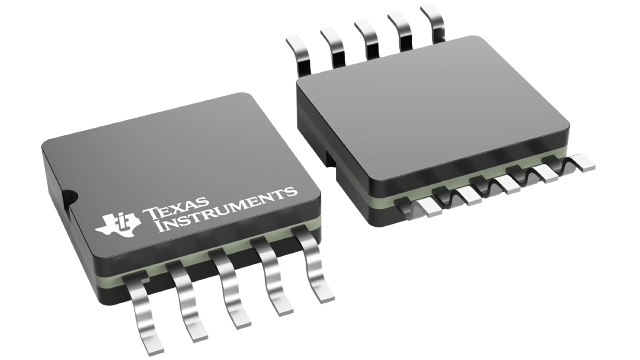

The DAC121S101WGMPR from Texas Instruments is a radiation-hardened, 12-bit digital-to-analog converter (DAC) designed for micro power applications. It offers a rail-to-rail voltage output and supports an SPI interface for data communication. The device operates within a wide power supply range of 2.7V to 5.5V, making it versatile for various system designs.
Key electrical specifications include a 12-bit resolution, a buffered voltage output type, and an output voltage range of 0V to 5.5V. The DAC features a settling time of 12.5µs and an integral non-linearity (INL) of ±8, ±1 LSB. Its architecture is a String DAC, and it has a sample/update rate of 1.8 Msps. The typical power consumption is 0.52mW.
This DAC is housed in a 10-CFP supplier package, with the specific package being a 10-CSOIC (0.241", 6.12mm Width). It is designed for surface mount applications. The operating temperature range is -55°C to 125°C, suitable for demanding environments.
The DAC121S101WGMPR is characterized by its low power operation, rail-to-rail output, and power-on reset to zero volts. It also includes an output SYNC interrupt facility and a power-down feature, enhancing its utility in power-sensitive designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1,055.92 | $1,055.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DAC121S101WGMPR has a resolution of 12 bits.
The DAC121S101WGMPR uses an SPI interface.
The output type is buffered voltage.
The operating voltage range is 2.7V to 5.5V.
The operating temperature range is -55°C to 125°C.
The DAC121S101WGMPR is supplied in a 10-CFP package, specifically a 10-CSOIC (0.241", 6.12mm Width).
