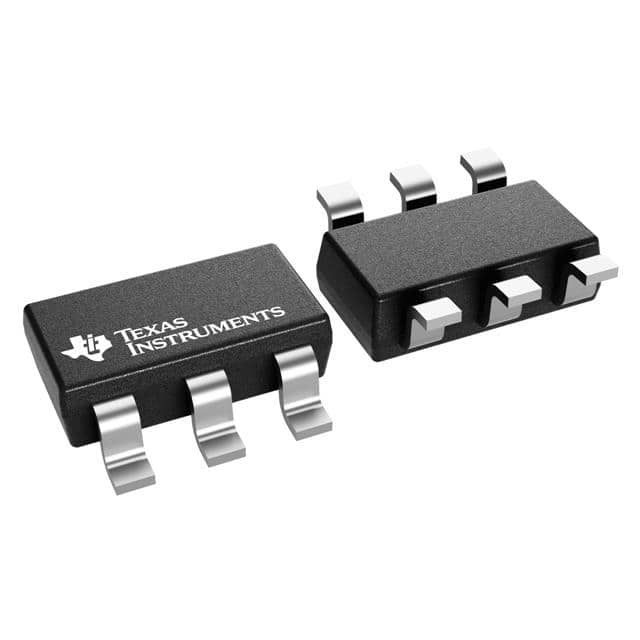

DAC121S101CIMKX The Texas Instruments DAC121S101CIMKX is a 12-bit digital-to-analog converter featuring a buffered voltage output and SPI interface. It operates over a wide temperature range.
Mfr Part #:

DAC121S101CIMKX

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments DAC121S101CIMKX is a 12-bit digital-to-analog converter featuring a buffered voltage output and SPI interface. It operates over a wide temperature range.
✓ Total Stock: 25,829 pcs

DAC121S101CIMKX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
25,829 pcs
On Request
25829 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

DAC121S101CIMKX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Data Interface
Differential Output
INL
Mounting Type
Number of Bits
Number of D
Operating Temperature
Output Type
Reference Type
Settling Time
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

DAC121S101CIMKX Description

Short technical summary and product information.

The Texas Instruments DAC121S101CIMKX is a 12-bit digital-to-analog converter (DAC) designed for general-purpose applications. It offers a buffered voltage output and supports SPI/DSP data interfaces.



Key electrical specifications include a 12-bit resolution, an output voltage range of 0 to 5.5 V, and a settling time of 10 µs. The device operates from a supply voltage of 2.7 V to 5.5 V and consumes minimal power, with typical consumption at 0.64 mW at 3.6V and significantly lower in power-down mode.



This DAC is housed in a compact SOT-23-6 Thin package, suitable for surface mount applications. It operates within a wide temperature range of -40°C to 105°C, making it suitable for various environmental conditions. The DAC121S101CIMKX is also noted for its low power operation and rail-to-rail voltage output.



Applications for this DAC include battery-powered instruments, digital gain and offset adjustment, and programmable voltage and current sources.

DAC121S101CIMKX Quick Information

Product Type: Digital-to-Analog Converter
Canonical Name: DAC121S101CIMKX 12-Bit Micro Power, RRO Digital-to-Analog Converter
Subcategory: Data Converters

DAC121S101CIMKX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

DAC121S101CIMKX Features

  • 12-bit resolution for precise voltage output.
  • Buffered voltage output range 0 to 5.5 V.
  • SPI/DSP interface for digital communication.
  • Low power consumption at 0.64 mW typical.
  • Compact SOT-23-6 Thin surface mount package.

DAC121S101CIMKX Applications

  • Ideal for battery-powered instruments.
  • Used for digital gain adjustment.
  • Suitable for programmable voltage sources.
  • Supports programmable current sources.

DAC121S101CIMKX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resolution of the DAC121S101CIMKX?

The DAC121S101CIMKX has a resolution of 12 bits.

What is the output voltage range of this DAC?

The output voltage range is 0 to 5.5 V.

What is the operating temperature range for the DAC121S101CIMKX?

The operating temperature range is -40°C to 105°C.

What package type is the DAC121S101CIMKX supplied in?

It is supplied in a SOT-23-6 Thin, TSOT-23-6 package.

What is the typical power consumption of the DAC121S101CIMKX?

The typical power consumption is 0.64 mW at 3.6V.
