| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
154,302 pcs
|
154302 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,259 pcs
|
7259 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
422 pcs
|
422 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Data Interface | |
| Differential Output | |
| INL | |
| Mounting Type | |
| Number of Bits | |
| Number of D | |
| Operating Temperature | |
| Output Type | |
| Reference Type | |
| Settling Time | |
| Supplier Device Package | |
| Voltage |
The DAC104S085CISD/NOPB from Texas Instruments is a general-purpose, 10-bit, quad voltage-output digital-to-analog converter (DAC). It is designed to operate from a single 2.7V to 5.5V power supply, making it suitable for a wide range of applications.
Key electrical specifications include a 10-bit resolution, a settling time of 6µs, and integral non-linearity (INL) of ±2 LSB. The device features a rail-to-rail voltage output and a power-on reset function that sets the output to 0V. It consumes low power, with typical supply current of 1.1 mW at 3V and 2.5 mW at 5V in normal mode, and significantly less in power-down mode.

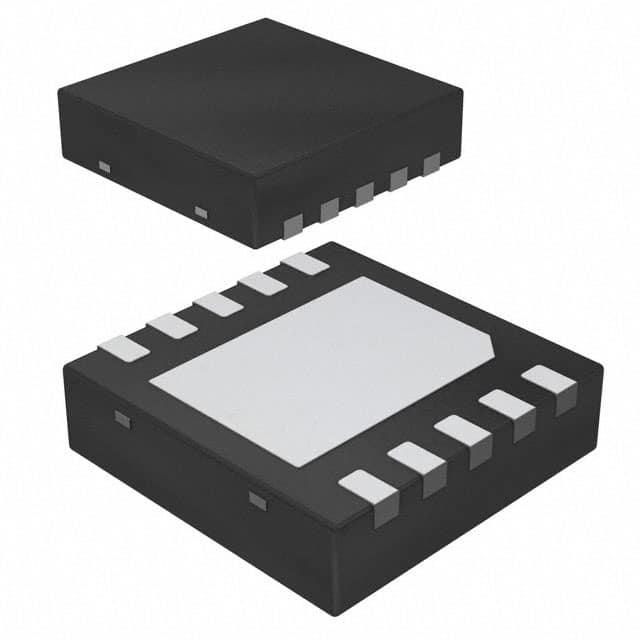

This DAC supports SPI and DSP interfaces and has a buffered voltage output. It is available in a 10-WSON (3x3) package and a 10-WFDFN Exposed Pad package, both surface-mount types. The operating temperature range is -40°C to 105°C.
The DAC104S085CISD/NOPB is qualified for automotive applications and meets AEC-Q100 standards. Its small package size and low power consumption make it an ideal choice for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.65 | $2.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DAC104S085CISD/NOPB has a resolution of 10 bits.
The operating temperature range is -40°C to 105°C.
It operates from a single supply voltage range of 2.7V to 5.5V.
The settling time is a maximum of 6µs.
It is available in a 10-WSON (3x3) package and a 10-WFDFN Exposed Pad package.
