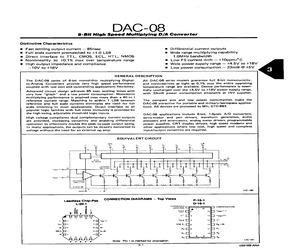

The Advanced Micro Devices DAC-08AQ is an 8-bit digital-to-analog converter (DAC) designed for various electronic applications. This component utilizes a parallel input format with an 8-bit binary input code, allowing for straightforward data integration.
Key electrical characteristics include a nominal supply voltage of 15V and a negative supply voltage of -15V. The DAC-08AQ boasts a fast settling time of 0.085 microseconds, crucial for high-speed signal processing. It operates within a wide temperature range, from -55°C to 125°C, and is rated for military temperature grade applications.
Packaged in a CDIP16 through-hole configuration, the DAC-08AQ features a dual in-line package with a terminal pitch of 2.54 mm. The package body is constructed from ceramic with a metal-sealed cofired process, and the terminals are finished with tin lead. This robust construction ensures reliability in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.70 | $8.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The DAC-08AQ is an 8-BIT DAC.
The input format is PARALLEL, 8 BITS.
The settling time is 0.085 us.
The nominal supply voltage is 15 V and the nominal negative supply voltage is -15 V.
The operating temperature range is from -55 Cel to 125 Cel.
The DAC-08AQ is supplied in a CDIP16 package with through-hole mounting.
